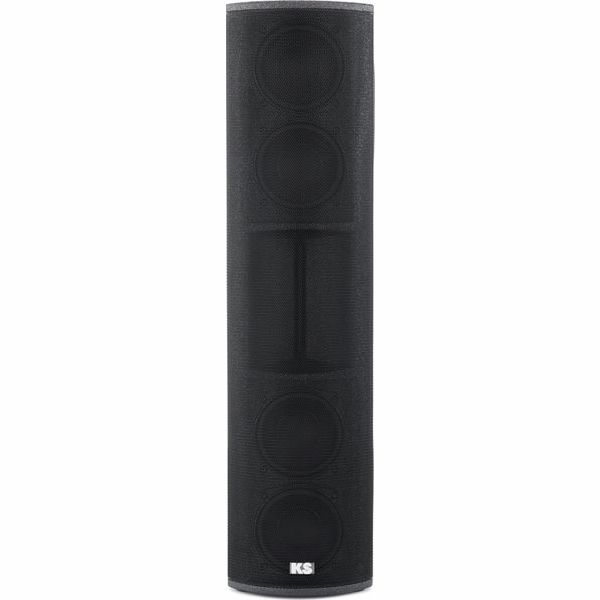

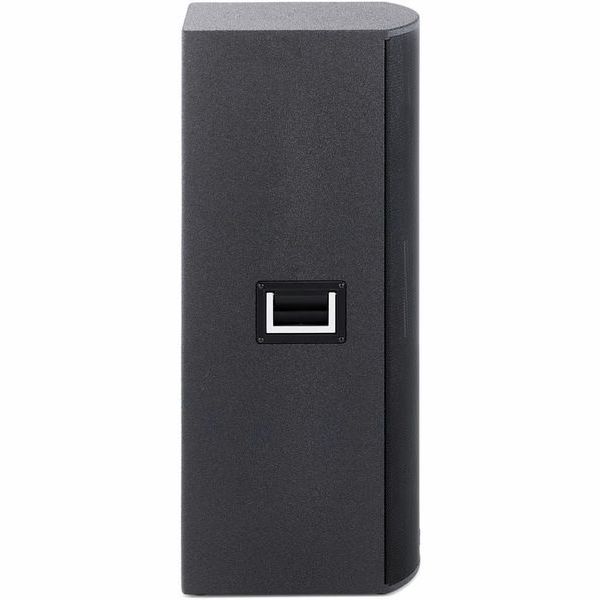

KS audio CPD 14N
Quantity
-
Detail

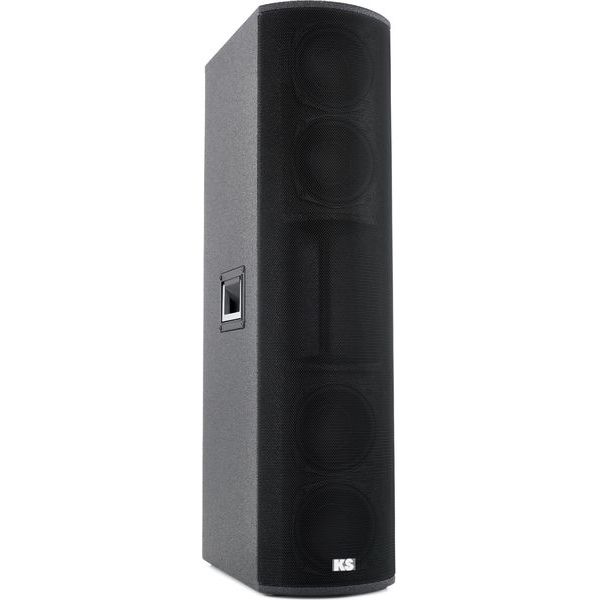

3 1/2-Way Full Range Loudspeaker

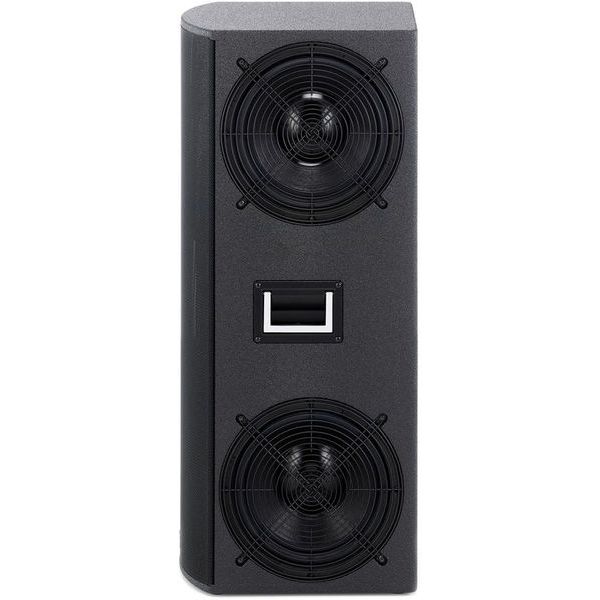

- Mounting: 2x 10", 4x 5", 1x 0.75"
- Dispersion pattern asymmetrical 90°/30°
- 2x Class D full-bridge, FET Amp
- FIR filtering
- Power: 500 + 250 + 100 W RMS,1500 W peak
- Maximum level:124 dB cont. 130 dB peak
- Delay up to 48 m
- Frequency response: 38 - 20000 Hz +-3 dB

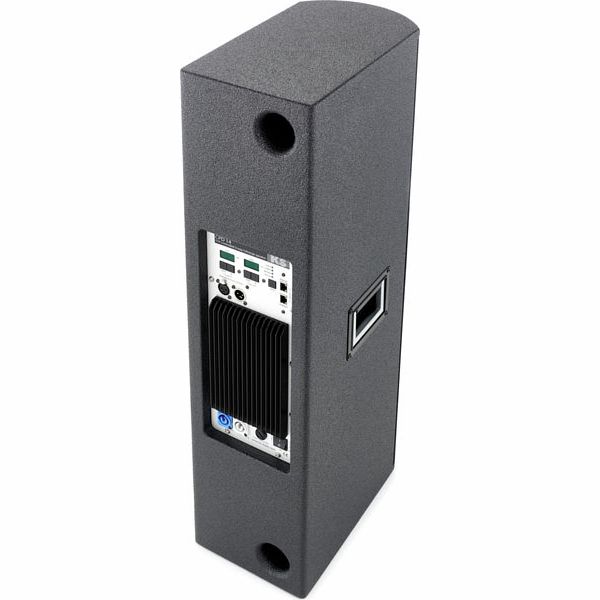

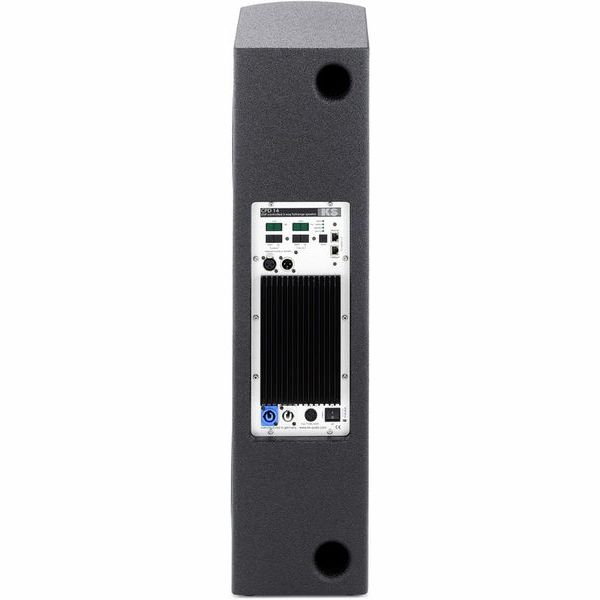

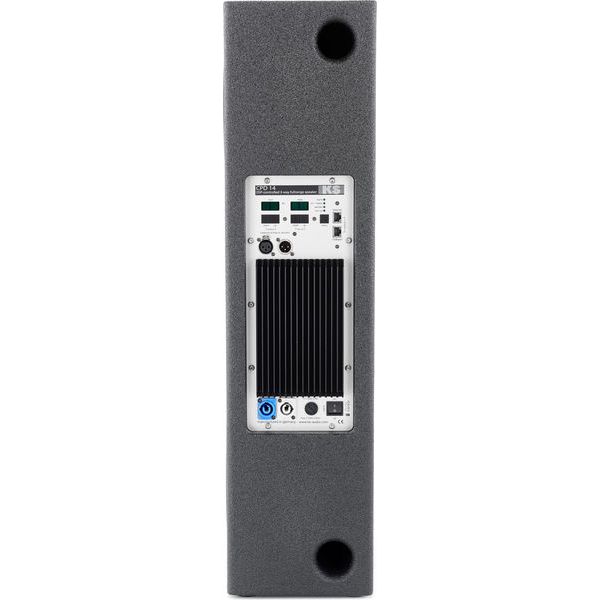

- Network input
- XLR input analogue or AES/EBU with automatic switching
- Power Twist input
- 35 mm stand flange mount
- Dimensions (H x W x D): 830 x 208 x 355 mm
- Weight: 25.0 kg
- Available sinceNovember 2015
- Item number373946
- Sales Unit1 piece(s)
- Power (Manufacturers Specs)1500 W

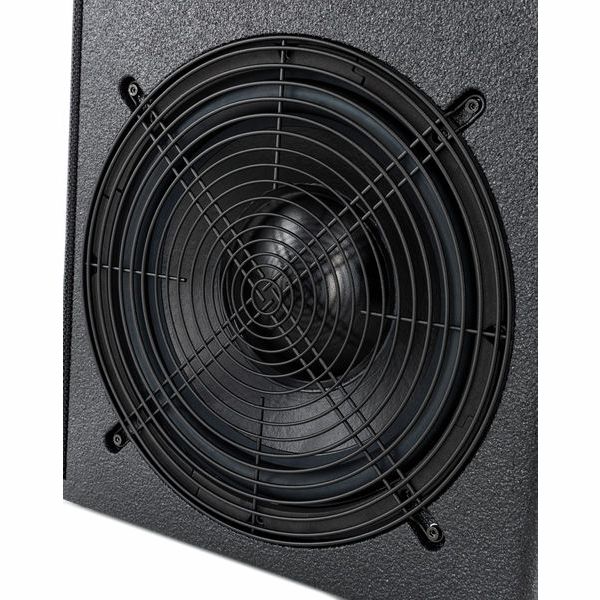

- Bass Speaker in Inch10"
- Ways3-Way
- ColourBlack
- Weight25 kg
- Housing MaterialWood
- Analog Inputs1
- Microphone Input0
- Line OutXLR
- Media PlayerWifi Play
- Remote ControlRJ45
- EffectsNo
- Low CutYes
- Monitor AngleNo
- RMS Power850 W
- Width208 mm
- Depth355 mm
- Sound Pressure in dB130 dB
- Height830 mm
- Number of HT Speakers1
- HT Speaker in Inch0,75
- Number of Midrange Speaker4
- Midrange Speaker in Inch5
- Number of Bass Speakers2
- AccuNo
- ConstructionColumn
- Stand Flange35 mm
- Mounting PointNo
- Line InputYes
- Ground LiftYes
- Handheld / HeadsetNo
- Horizontal Beam Angle90 °
- Vertical Beam Angle70 °
- Frequency Range (-3dB) from38 Hz
- Frequency Range (-3dB) to20000 Hz
- Active CoolerNo
