the t.bone freeU PT 823 BodymiKe T Bundle
Quantity
-
Detail
Bundle offer comprising

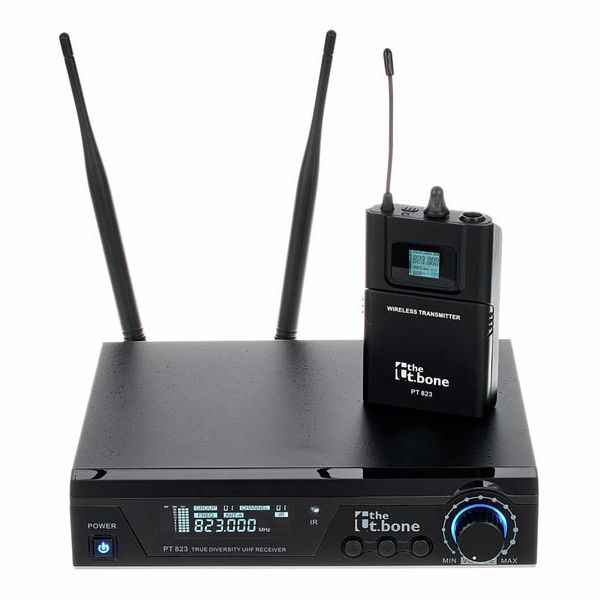

the t.bone freeU PT 823
UHF Wireless System

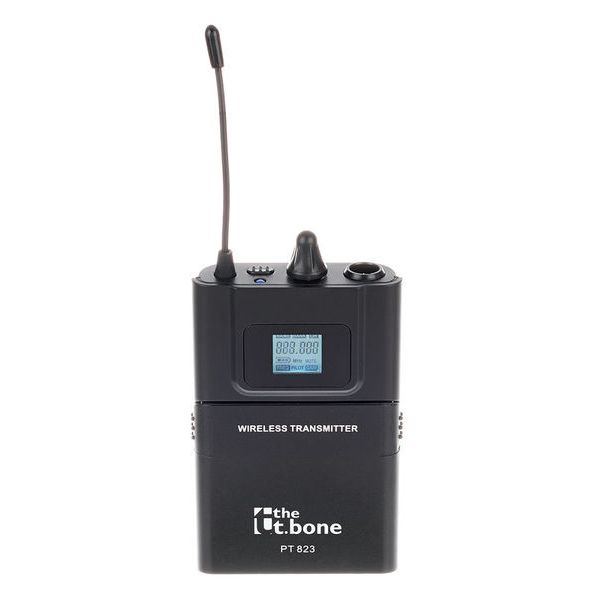

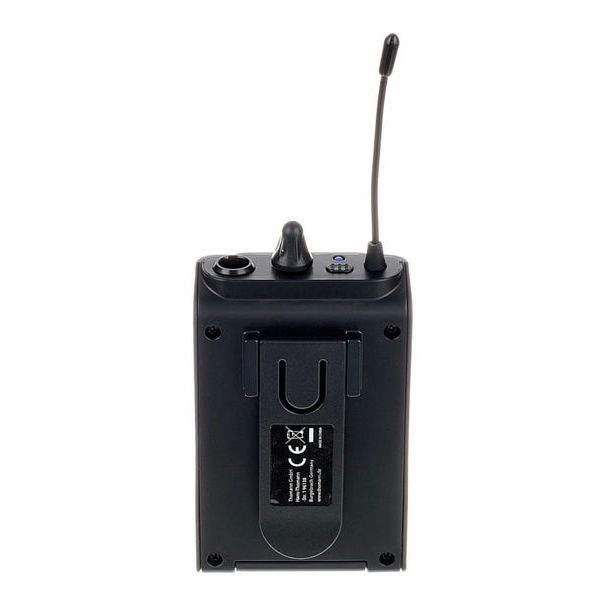

- Includes a pocket transmitter and guitar cable for applications with instruments
- Frequency band: 823-832 MHz
- Frequency response: 50 - 16,000 Hz
- 10 Preprogrammed frequency groups with 10 available channels each
- Auto squelch
- Frequency scan in the receiver
- Adjustable AF output
- Transmission power: 10 mW
- Infrared transmission of the settings from the receiver to the transmitter
- Pilot tone
- Increments of 80 kHz
- Modulation type: F3E

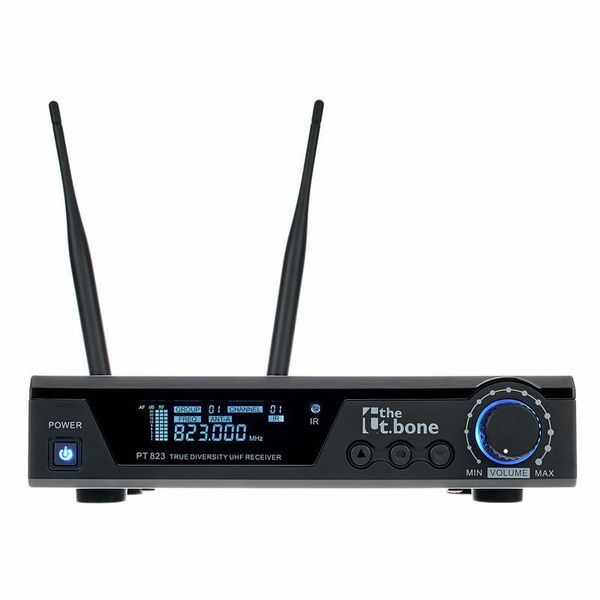

- LCD Display

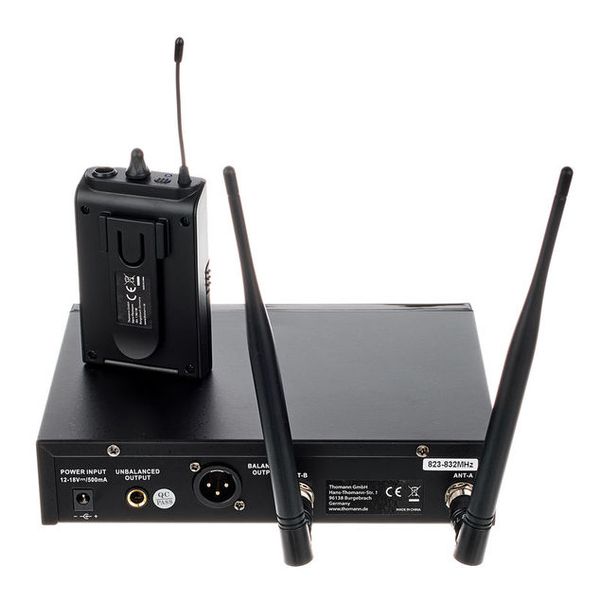

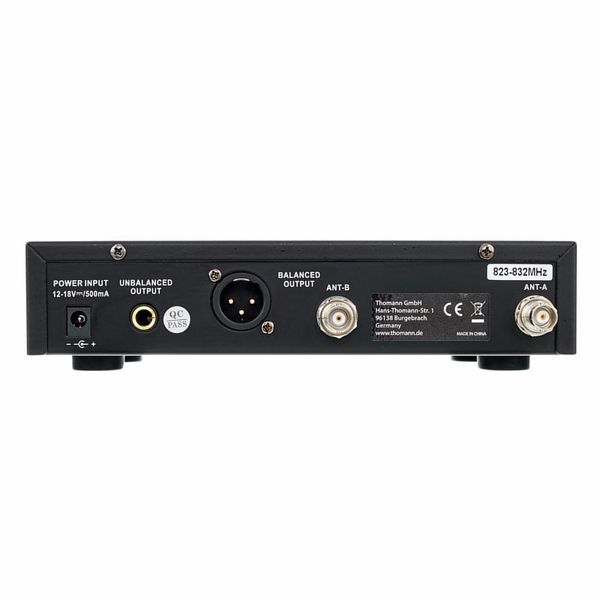

- 9.5" 1U housing with 2 x BNC antenna connectors
- XLR and jack output
- Operates with 12 V, 0.5 DC power supply, centre positive
- Pocket transmitter housing: Plastic
- LCD-Display

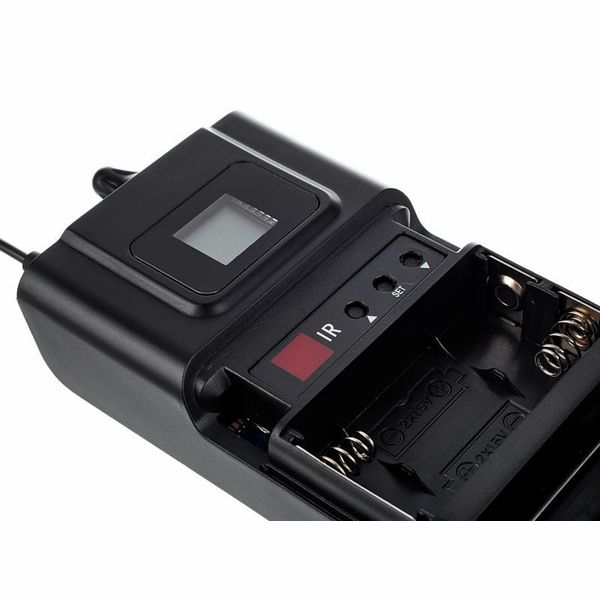

- Operates with 2 AA batteries or rechargeable batteries

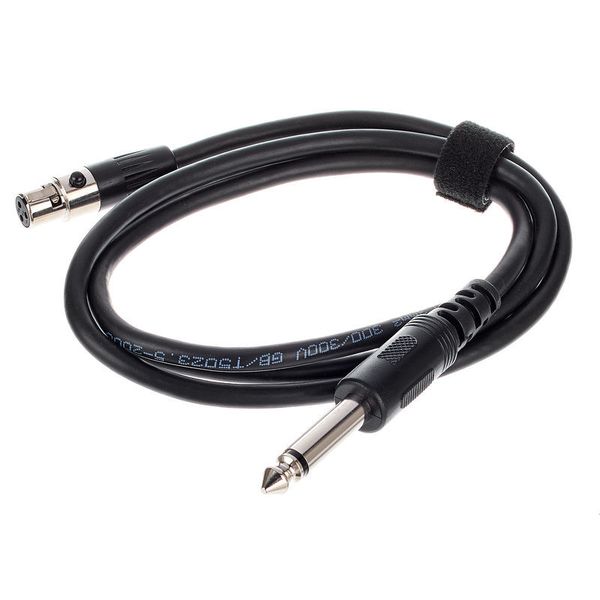

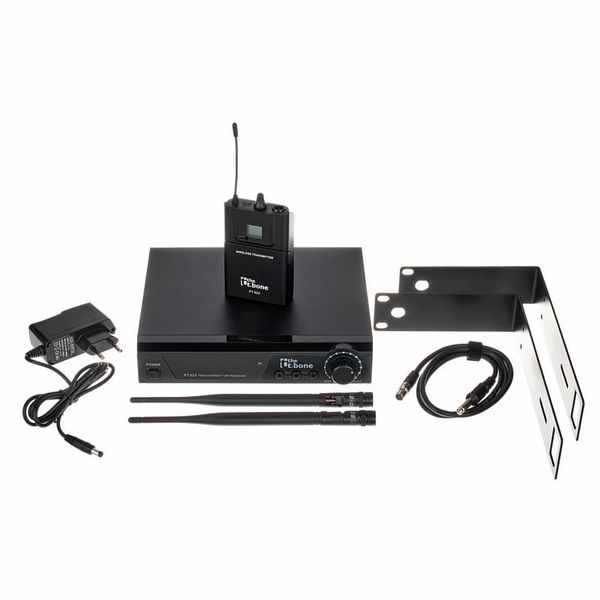

- Includes guitar cable, antennas, EU power supply and a rack kit for the installation of an 1 U receiver
- Suitable antenna converter: Art. 177448 (not included)
Note: a maximum of 4 systems can be operated simultaneously in this frequency band.

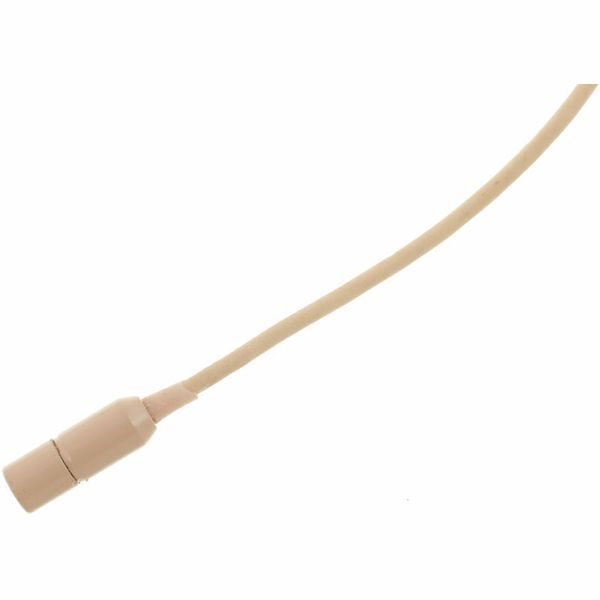

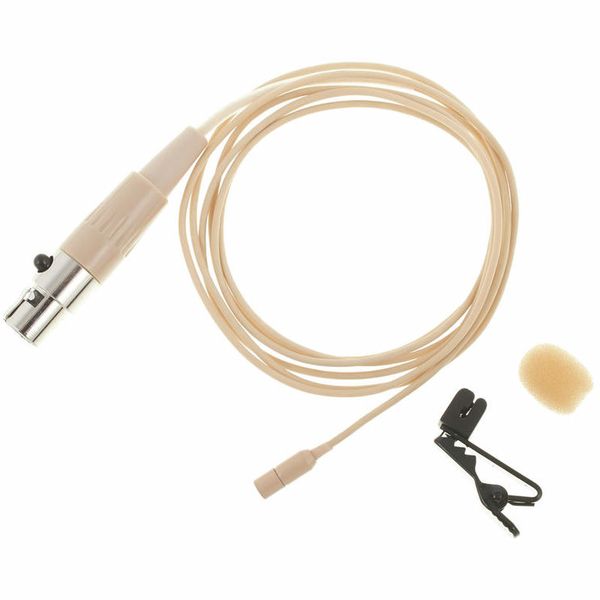

the t.bone BodymiKe - Tan AKG
Lightweight condenser lavalier microphone
- For speaking and music uses
- Omnidirectional polar pattern
- 50 - 20,000 Hz
- 2.7 mV / Pa
- -51.2 dB re 1 V / Pa
- 125 dB SPL max.
- 300 Ohm

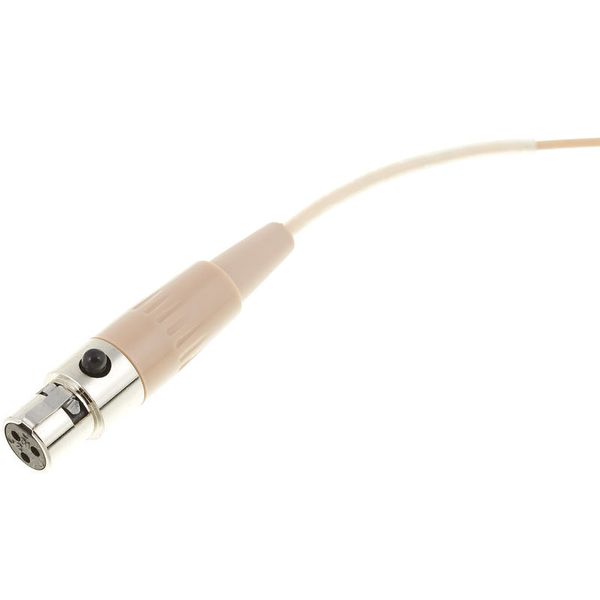

- 3-Pin TQG connector for AKG and t.bone wireless system
- Colour: Beige
- Cable length approx. 120 cm
- Incl. Cable clip and wind shield
- Available sinceAugust 2017
- Item number420987
- Sales Unit1 piece(s)
- Capsule TypeCondenser
- Microphone ColourBeige
- Receiver Typestationary
- Frequency823 MHz – 832 MHz
- Transmission systemAnalog
- Channels Lapel Microphone1
- DanteNo
- Patternomnidirectional
- DiversityYes
- Mic Model349183
- Receiver Width in mm210 mm
- Receiver Height in mm44 mm
- Receiver Depth in mm170 mm
- Receiver Weight in kg0,8 kg
- Transmitting Power in mW30 mW
- Selectable Frequencies100
- Switching Bandwidth in MHz9 MHz
- Frequency DisplayYes
- Frequency ScanYes
- Removable AntennaBNC
- Battery Status MonitorYes
- OutputXLR
- Charging SystemNo
- RackkitYes
