the t.bone freeU HT 823
Quantity
-
Detail
UHF Wireless System
- With handheld transmitter
- Frequency band: 823 - 832 MHz
- Dynamic capsule
- Polar pattern: Super-cardioid
- Frequency range: 50 - 16,000 Hz
- 10 Preprogrammed frequency groups, each with 10 channels
- Auto squelch
- Frequency scanning at the receiver
- Adjustable AF out
- 30 MW transmitter power
- Infrared transmission setting from the receiver to the transmitter
- Pilot tone
- 80 KHz frequency grid
- Modulation type: F3E

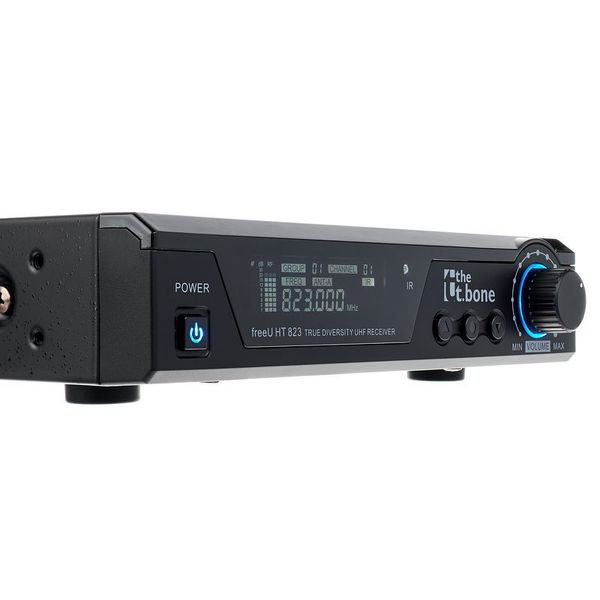

- LC-Display

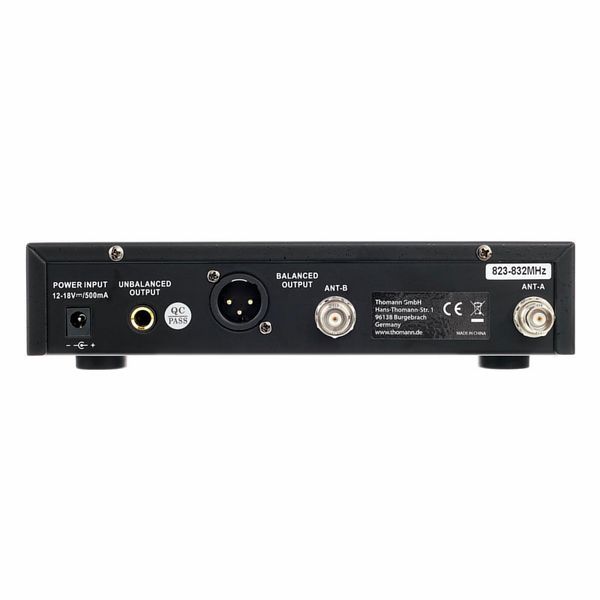

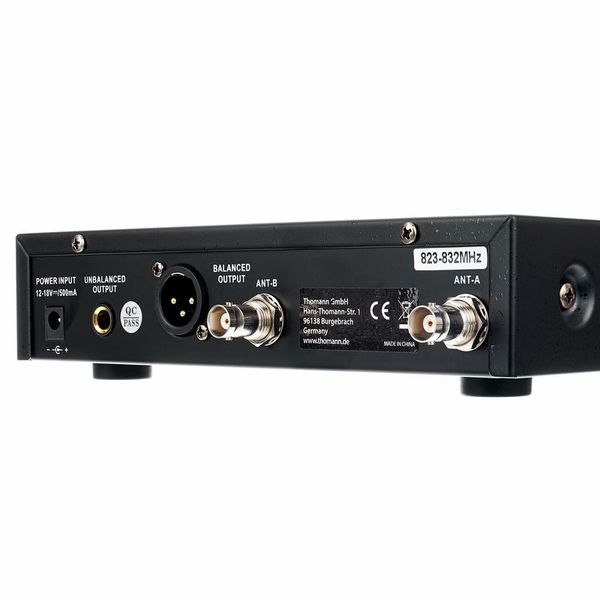

- Case size: 9.5", 1U housing with 2 BNC antenna connections
- XLR and jack output
- Operation with 12V 0.5A DC power supply (+ inside)

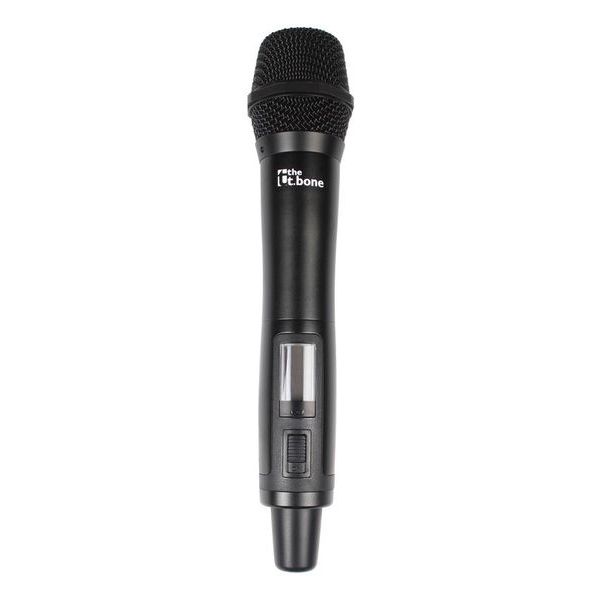

- Dynamic handheld transmitter with metal housing
- LC-Display
- Powered by 2 AA batteries

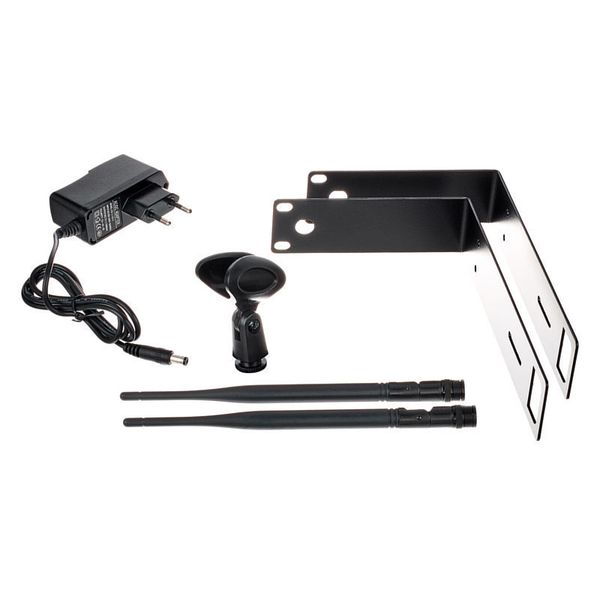

- Includes microphone holder, antennas, EU power supply and rack kit for the installation of a receiver of 1 RU
- Optional antenna converter: Article Nr. 177448 (not included)
Note: In this frequency band a maximum of 4 systems can be operated simultaneously.
- Available sinceJune 2017
- Item number405079
- Sales Unit1 piece(s)
- Transmission technologyanalog
- Channels Handheld Transmitter1
- Capsule TypeDynamic
- PatternSuper Cardioid
- Receiver TypeStationary
- Frequency823 MHz – 832 MHz
- OutputXLR
- Charging SystemNo
- Integrated BatteryNo
- DanteNo
- DiversityYes
- Receiver Width in mm210 mm
- Receiver Height in mm44 mm
- Receiver Depth in mm170 mm
- Receiver Weight in kg0,8 kg
- Transmitting Power in mW30 mW
- Selectable Frequencies100
- Switching Bandwidth in MHz9 MHz
- Frequency DisplayYes
- Frequency ScanYes
- Removable AntennaBNC
- Battery Status MonitorYes
- RackkitYes
