the t.bone free solo Twin HT 520 MHz
Quantity
-
Detail

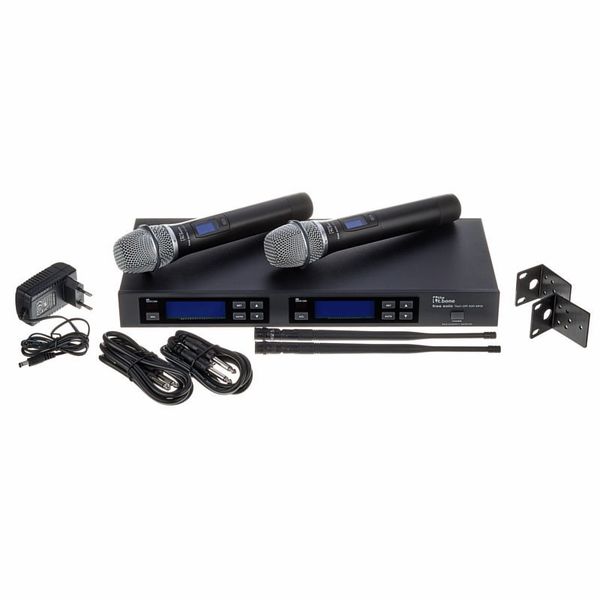

2-Channel UHF Wireless System
- With 2 dynamic handheld transmitters
- Directional characteristic: cardioid
- Frequency band: 518-536 MHz
- 10 Pre-programmed frequency groups with 12 available channels each
- 1 User channel

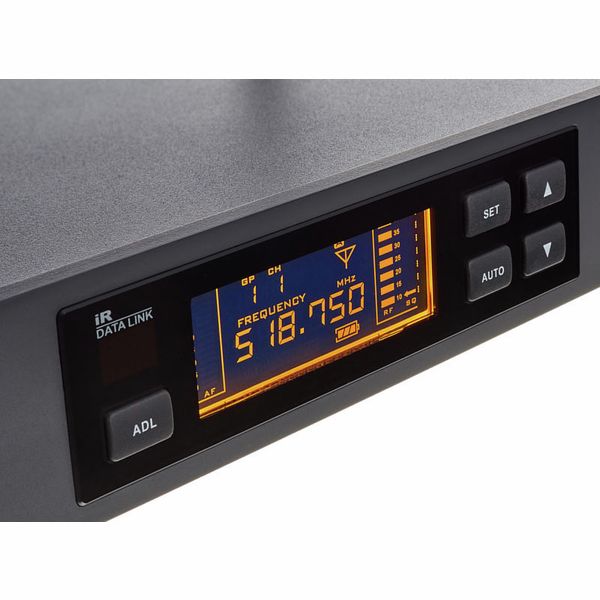

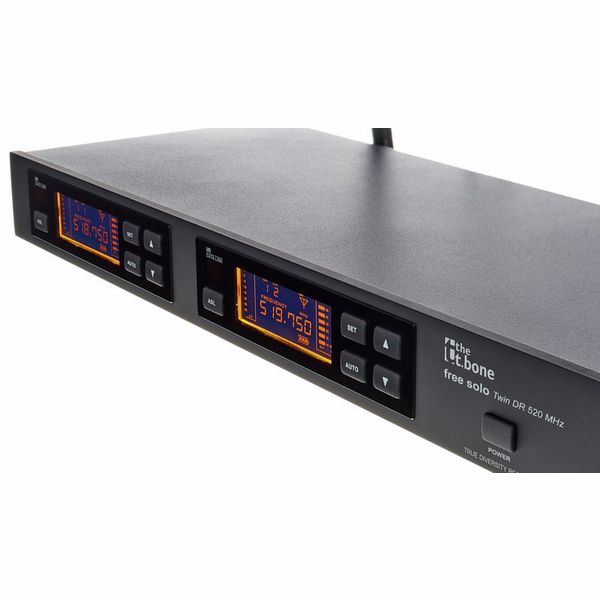

- Adjustable squelch with threshold display on the receiver
- Frequency scan in the receiver
- Adjustable AF output
- Adjustable transmission power: 5 mW, 10 mW, 20 mW
- Infrared transfer of the settings from the receiver to the transmitter
- Pilot tone
- Increments of 25 kHz

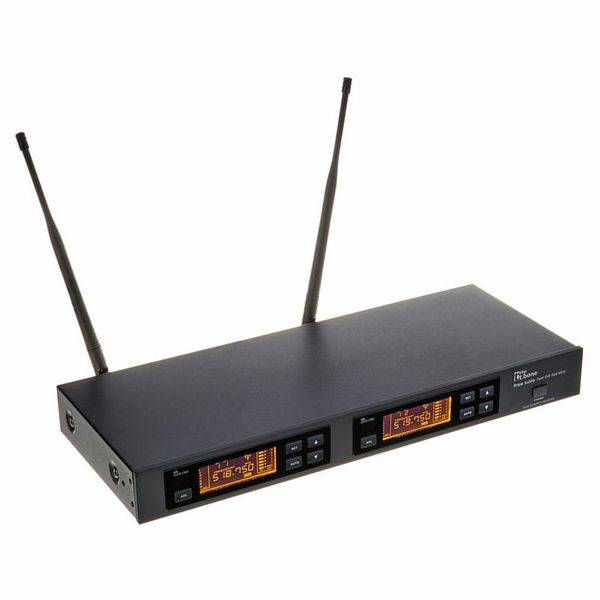

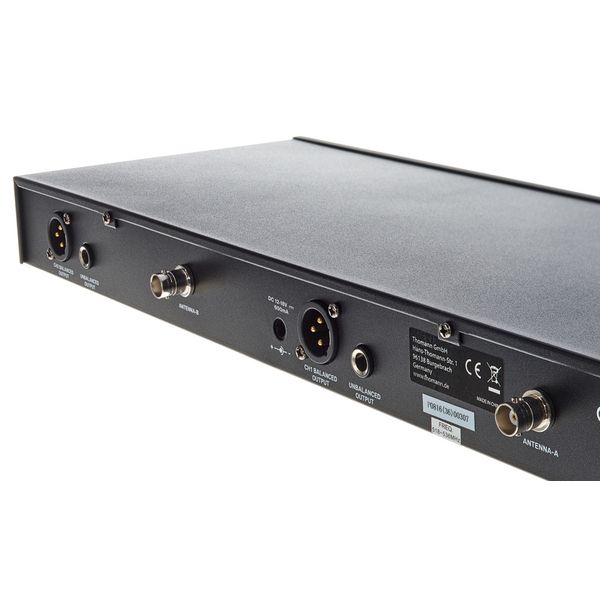

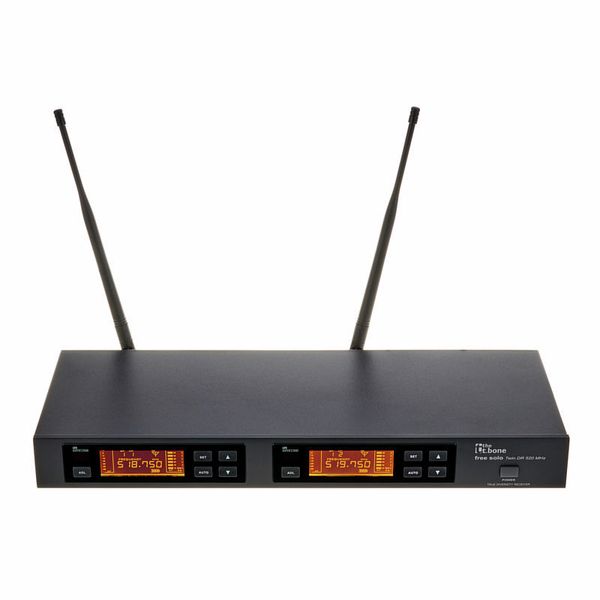

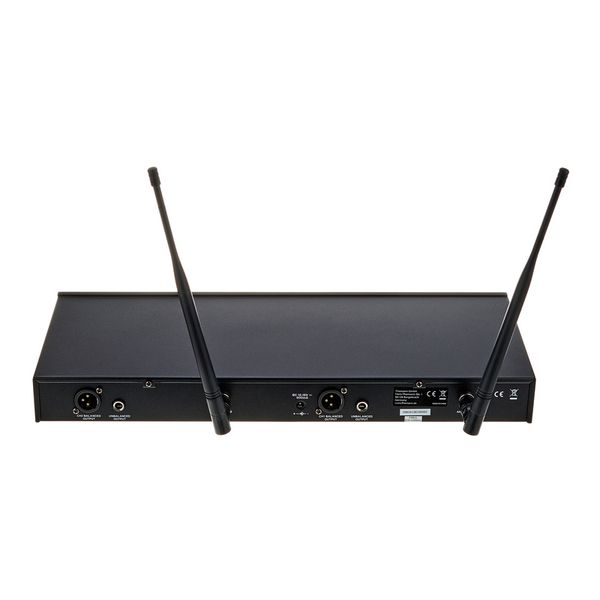

- 19"/ 1 U Housing with 2 BNC outputs for antennas
- XLR- and jack output
- Operates with a 12V, 500 mA DC power supply (positive polarity (+) inside)

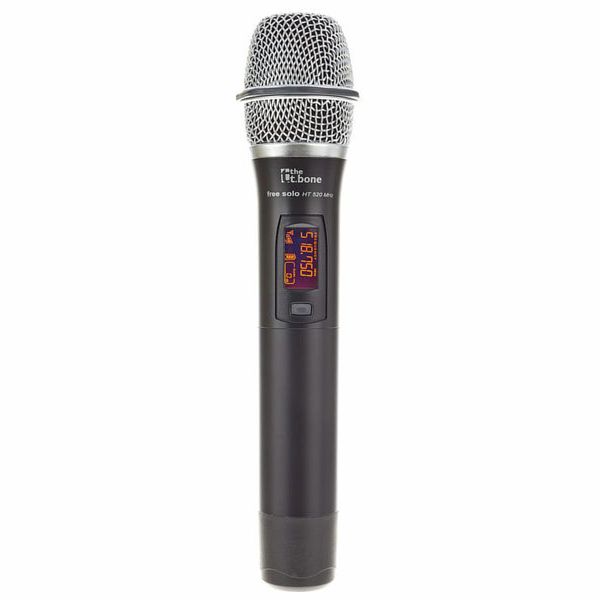

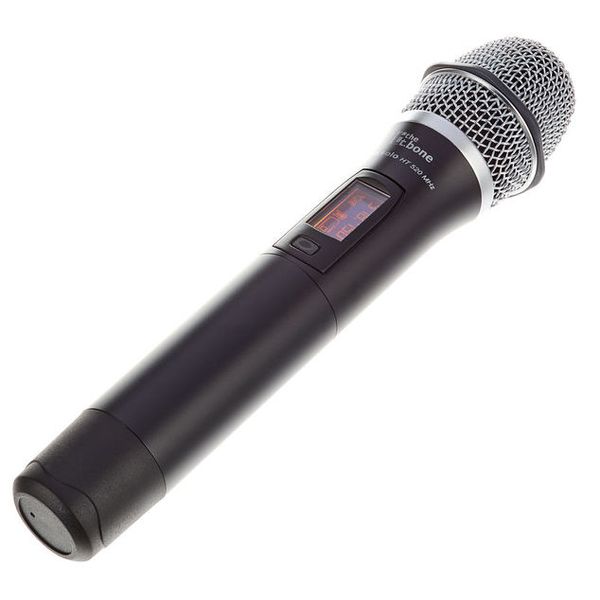

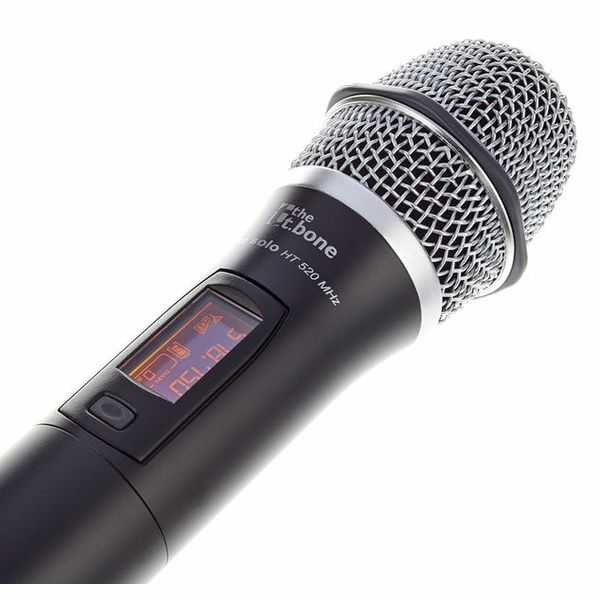

- Dynamic handheld transmitter with metal housing

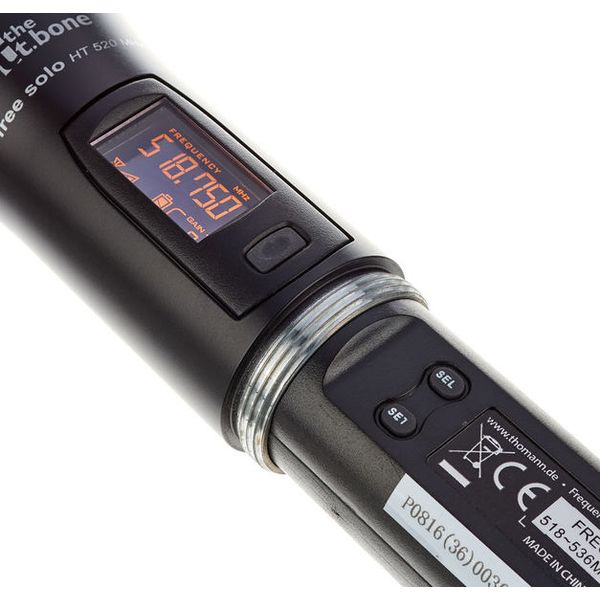

- LCD display

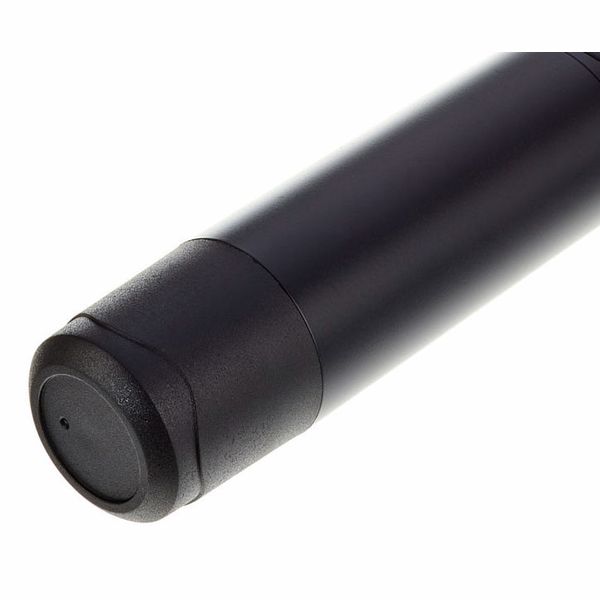

- Operates with 2 AA batteries or rechargeable batteries

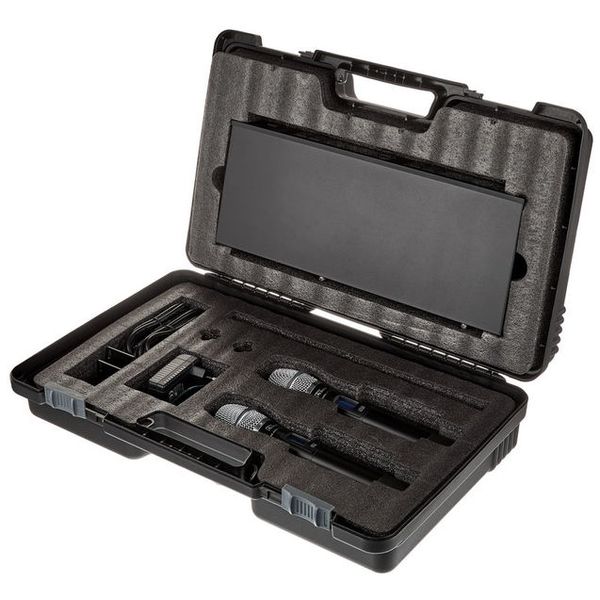

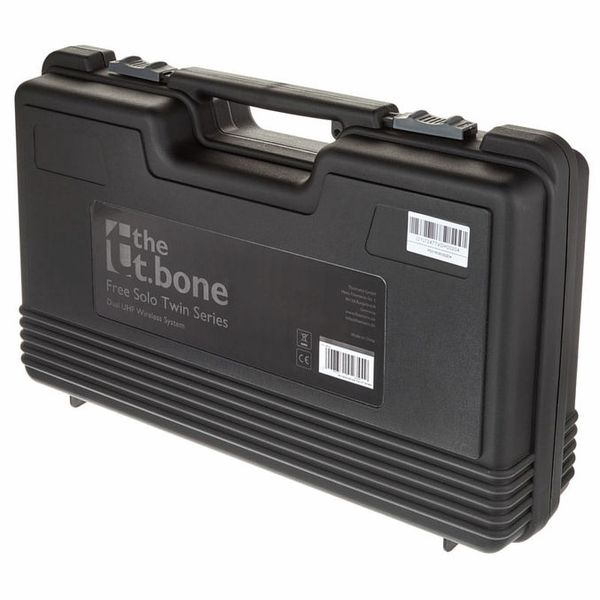

- Includes a plastic case and rack mount
- Suitable microphone holder available under Article Nr 150793 (not included)
- Optional antenna converters available under Article Nr 177448 (not included)
- Available sinceNovember 2016
- Item number380952
- Sales Unit1 piece(s)
- Transmission technologyanalog
- Channels Handheld Transmitter2
- Capsule TypeDynamic
- PatternCardioid
- Receiver TypeStationary
- Frequency518 MHz – 536 MHz
- OutputXLR
- Charging SystemNo
- Integrated BatteryNo
- DanteNo
- DiversityYes
- Receiver Width in mm412 mm
- Receiver Height in mm44 mm
- Receiver Depth in mm160 mm
- Receiver Weight in kg2 kg
- Transmitting Power in mW20 mW
- Selectable Frequencies120
- Switching Bandwidth in MHz18 MHz
- Frequency DisplayYes
- Frequency ScanYes
- Removable AntennaBNC
- Battery Status MonitorYes
- RackkitYes
