the t.bone free solo HT 1.8 GHz
Quantity
-
Detail

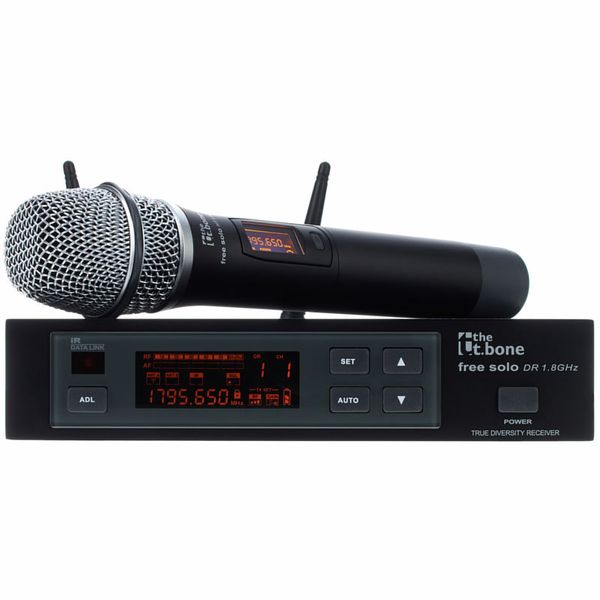

UHF Wireless System
- 1.8 GHz radio system with dynamic handheld transmitter (cardioid)
- 1 user bank with 16 memory presets
- Adjustable squelch with threshold display at receiver
- Frequency scanning in the receiver
- Adjustable AF out
- Infra Red Transmission setting from receiver to transmitter
- Pilot tone
- 25 kHz grid
- Up to six 1.8 GHz Free Solo spark gaps in parallel

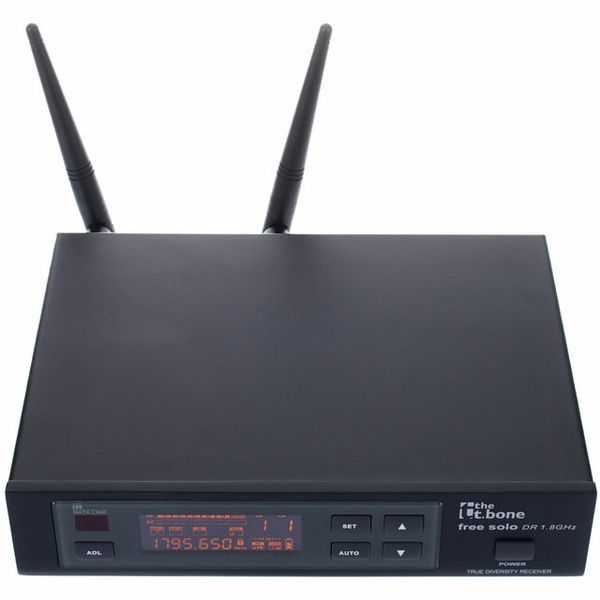

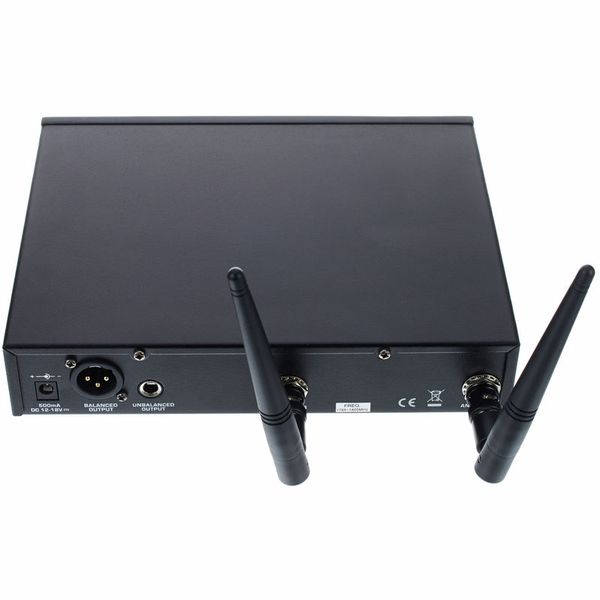

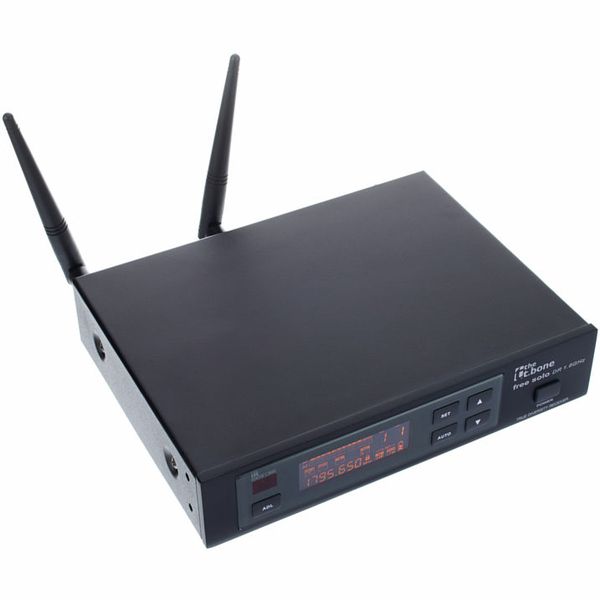

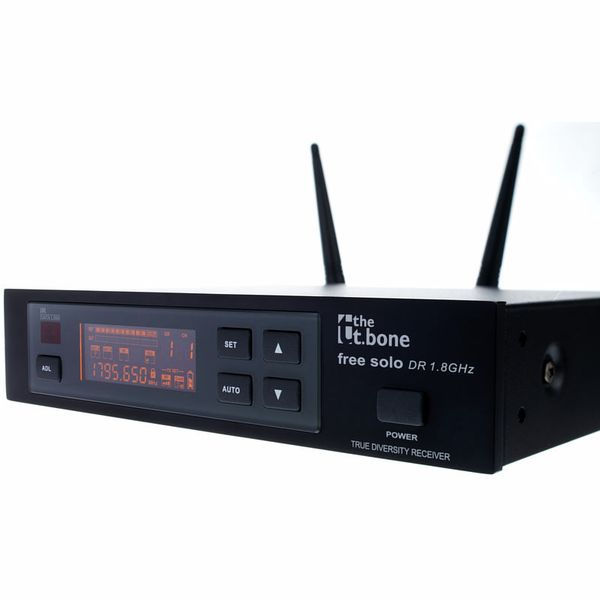

- 9.5" 1U enclosure with 2x BNC output for antennas

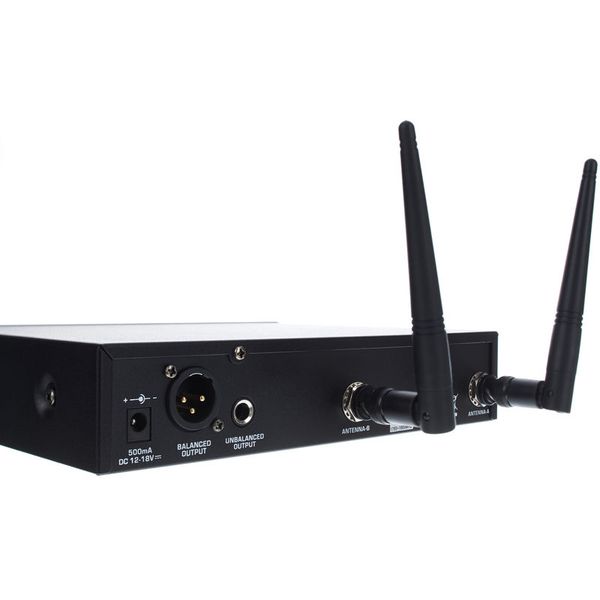

- XLR and jack output
- Operation with 12V 0.5A DC power supply (internal)

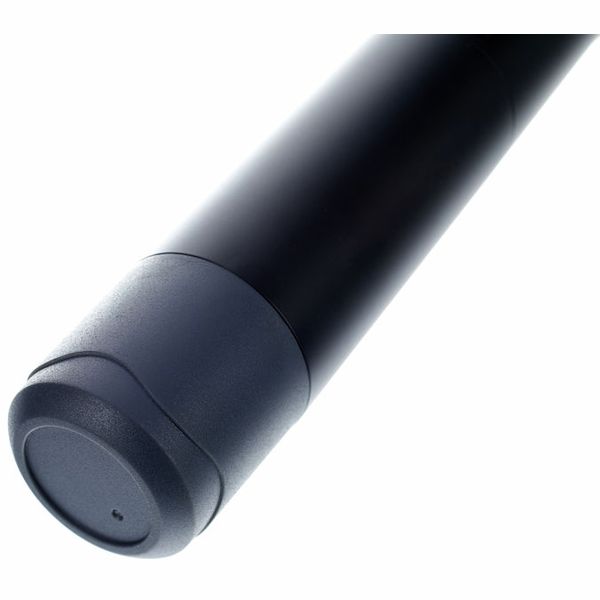

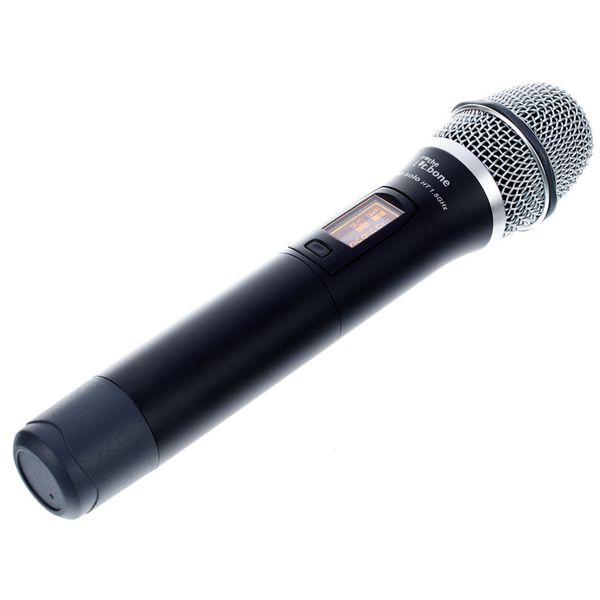

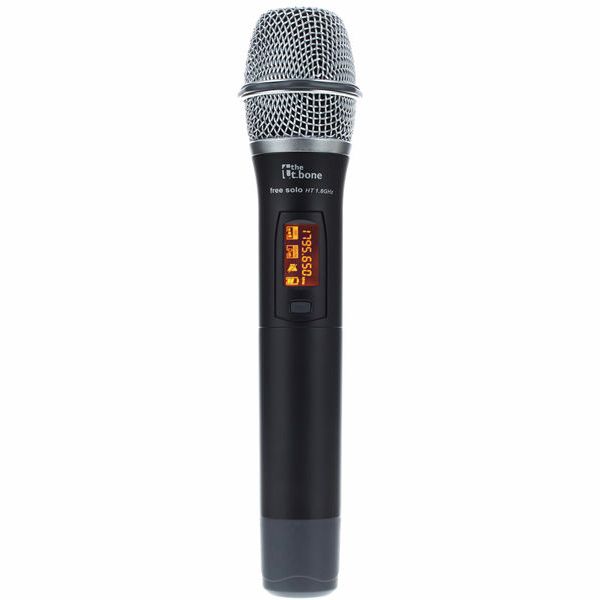

- Dynamic handheld transmitter with metal housing

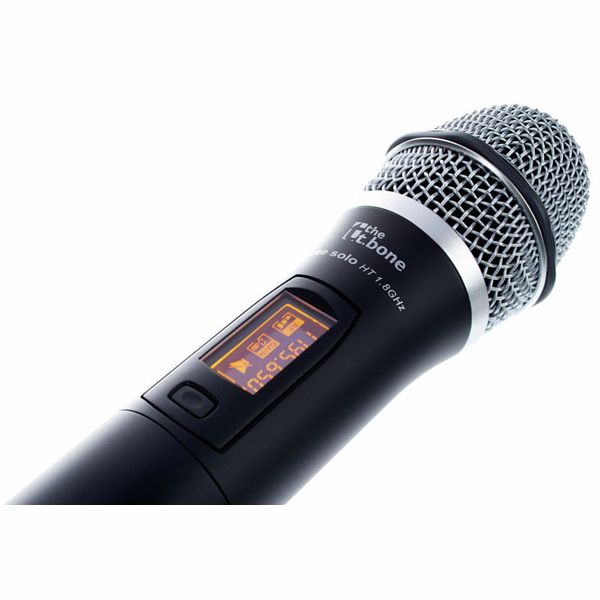

- LCD display
- Powered by 2x AA batteries (not included)
- Frequency band: 1785 - 1800 MHz
- Transmitting power between 5 mW, 10 mW and 20 mW selectable
- (With 2x AA 1.5V batteries) Battery life > 8 h
- Frequency response 60 Hz - 15 kHz
- Sensitivity -102 dBm
- Receiver dimensions (W × D × H, without antenna): 212 × 160 × 44 mm
- Receiver weight: 900 g
- Transmitter dimensions (L × D): 246 × 53 mm
- Transmitter weigh:t 250 g

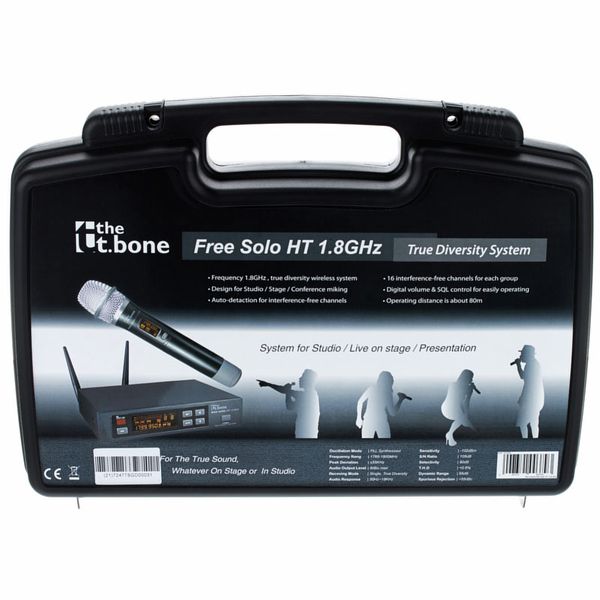

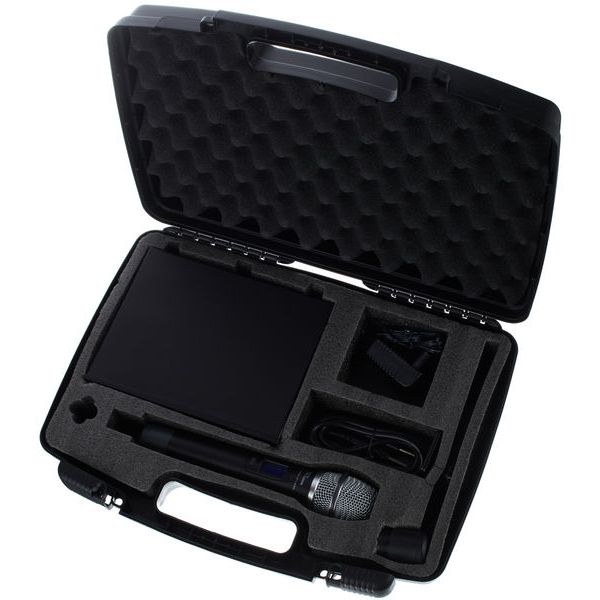

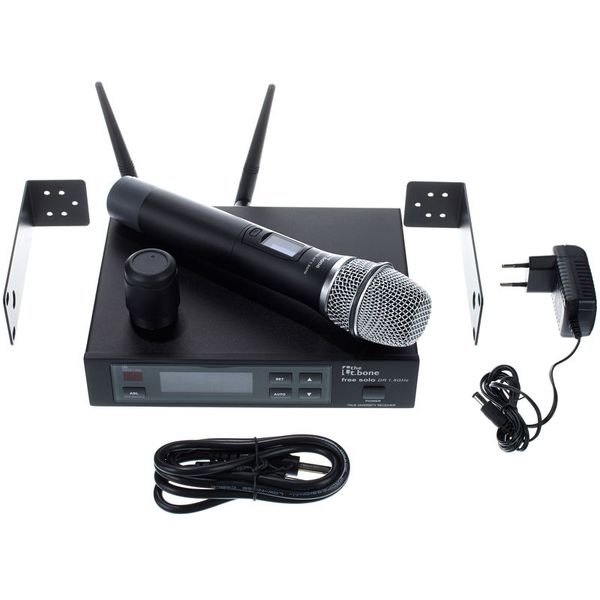

- Includes plastic case and rack mount
- Matching microphone holder: Article Nr. 288991 (not included)
- Optional antenna converter: Article Nr. 177448 (not included)
- Available sinceJanuary 2014
- Item number323200
- Sales Unit1 piece(s)
- Transmission technologyanalog
- Channels Handheld Transmitter1
- Capsule TypeDynamic
- PatternCardioid
- Receiver TypeStationary
- Frequency1800 MHz
- OutputXLR
- Charging SystemNo
- Integrated BatteryNo
- DanteNo
- DiversityYes
- Receiver Width in mm212 mm
- Receiver Height in mm44 mm
- Receiver Depth in mm160 mm
- Receiver Weight in kg0,9 kg
- Transmitting Power in mW20 mW
- Selectable Frequencies192
- Switching Bandwidth in MHz0,025 MHz
- Frequency DisplayYes
- Frequency ScanYes
- Removable AntennaBNC
- Battery Status MonitorYes
- RackkitYes
