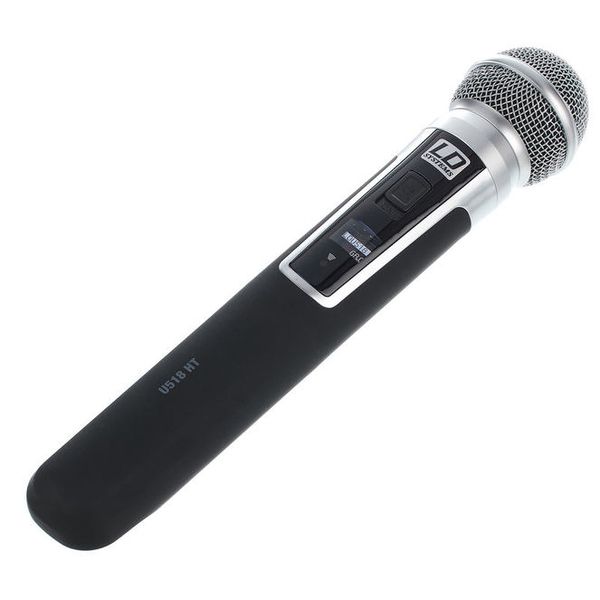

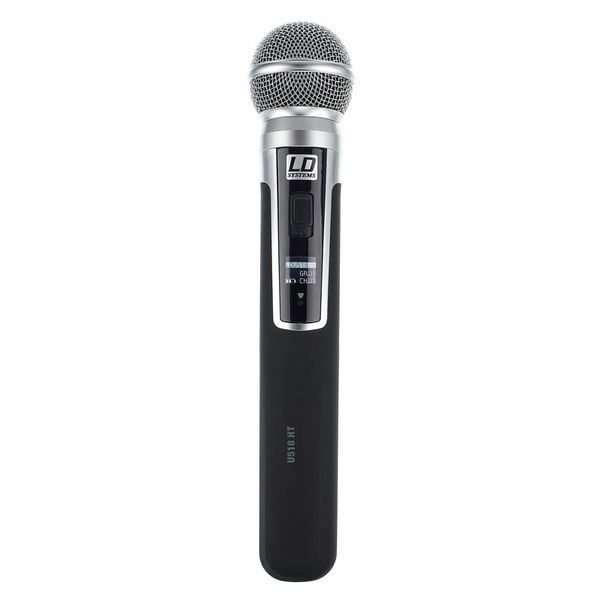

LD Systems U518 HHD2
Quantity
-
Detail

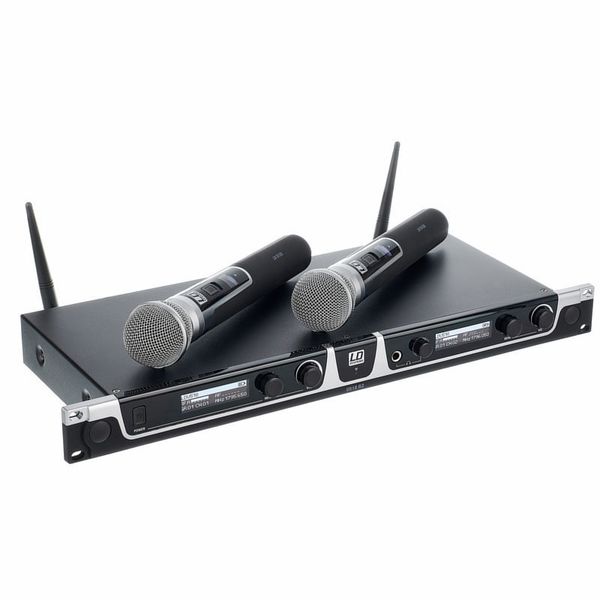

Dual UHF wireless system with 2 bodypack transmitters
- Dynamic interchangeable capsules
- Polar pattern: Cardioid

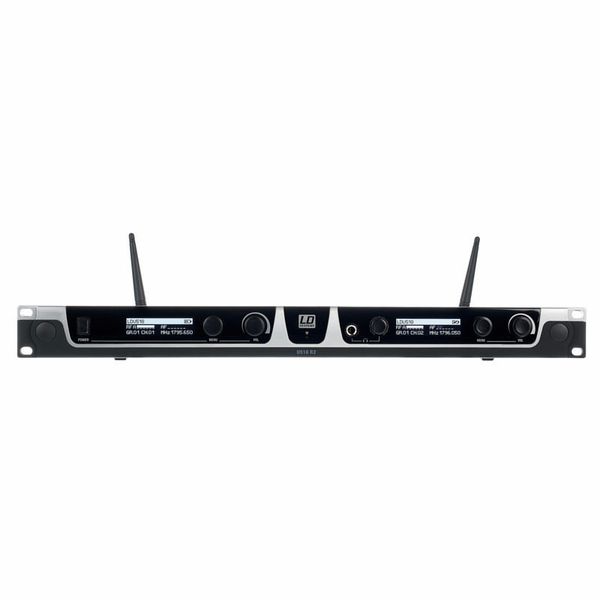

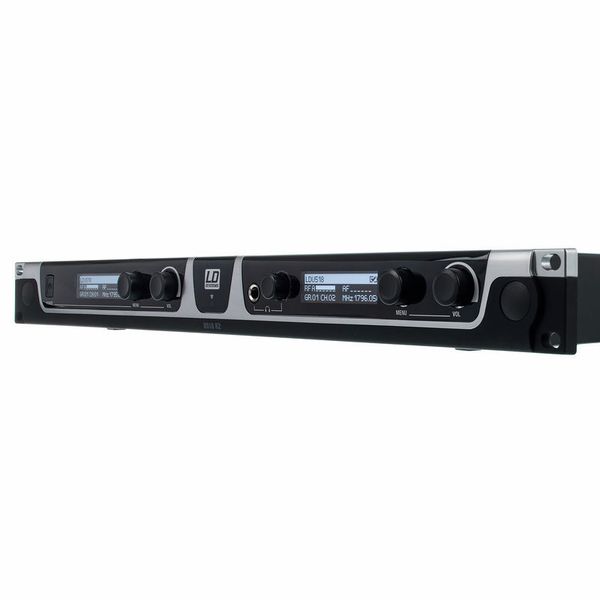

- 19" 1U True diversity receiver
- Frequency band: 1785 - 1800 MHz
- Frequency response: 60 - 16,000 Hz
- 96 Channels in 8 groups a 12 channels
- Switchable transmission power: 2, 10, 30 mW
- Frequency scan in the receiver
- Automatic frequency scan with infrared transmission of the setting from the receiver to the transmitter
- Pilot tone
- Bright OLED display
- Adjustable 6.3 mm headphone output

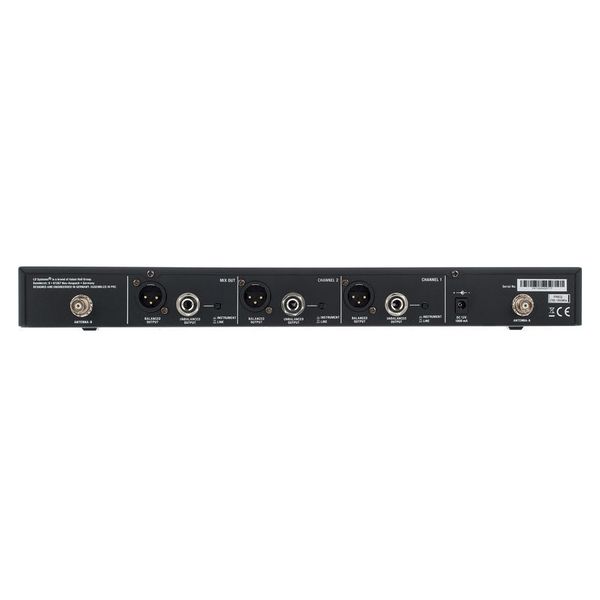

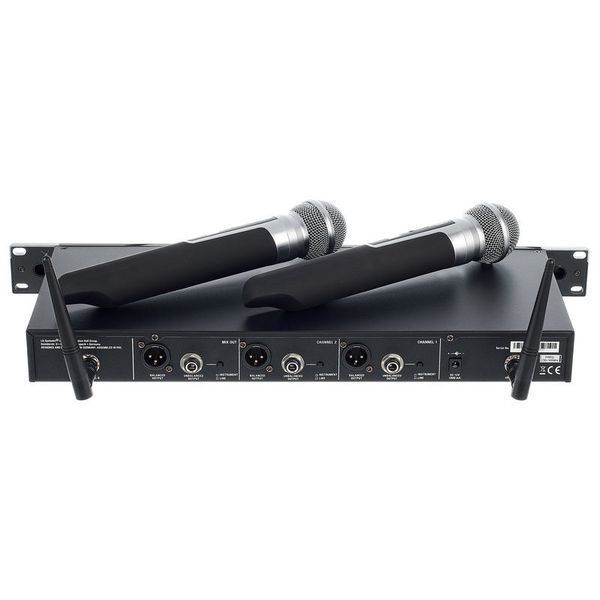

- XLR and jack output per channel
- XLR / jack mix output

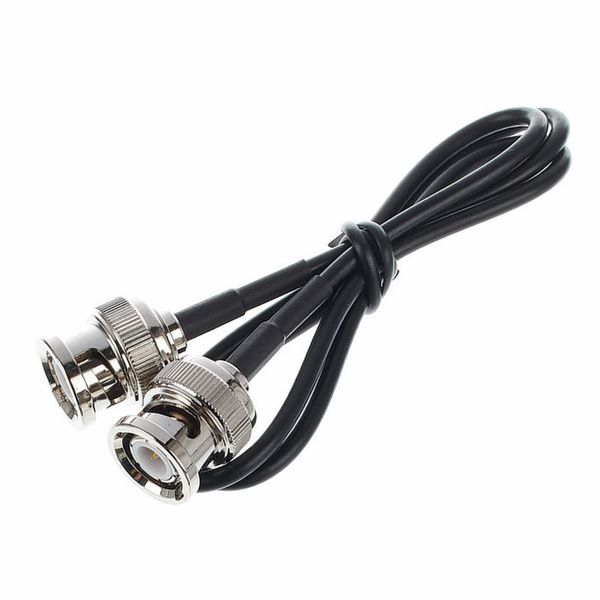

- BNC antenna connections

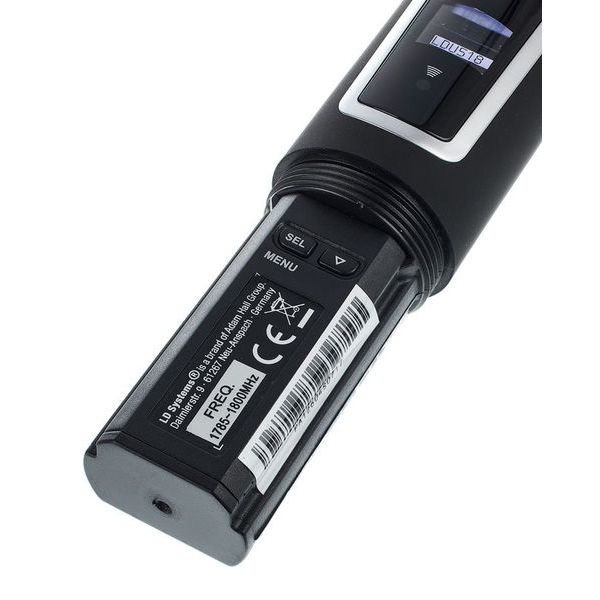

- Transmitter operation with 2 AA batteries or rechargeable batteries
- Receiver operation with 13.5V DC power supply
- Power consumption: 1000 mA

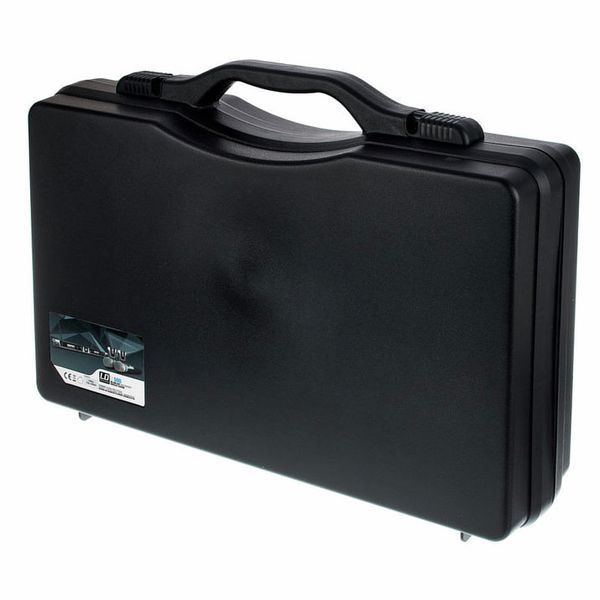

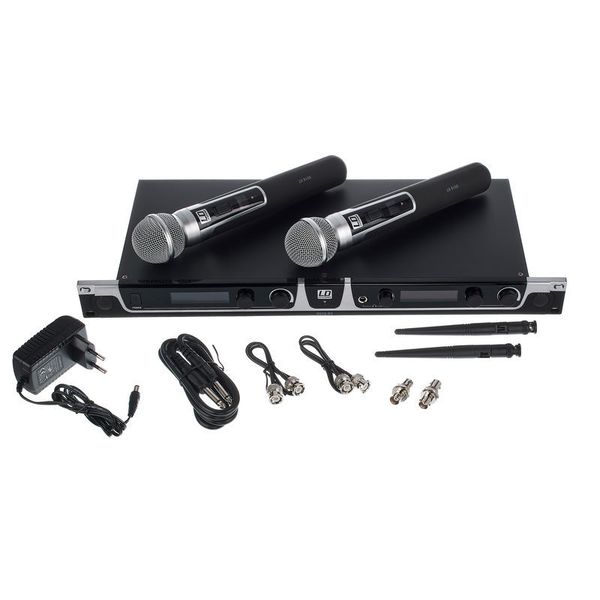

- Includes 4 AA batteries, antennas, case and power supply
- Available sinceApril 2018
- Item number436055
- Sales Unit1 piece(s)
- Transmission technologyanalog
- Channels Handheld Transmitter2
- Capsule TypeDynamic
- PatternCardioid
- Receiver TypeStationary
- Frequency1800 MHz
- OutputXLR
- Charging SystemNo
- Integrated BatteryNo
- DanteNo
- DiversityYes
- Interchangeable CapsuleYes
- Receiver Width in mm484 mm
- Receiver Height in mm44 mm
- Receiver Depth in mm200 mm
- Receiver Weight in kg2 kg
- Transmitting Power in mW30 mW
- Selectable Frequencies96
- Frequency DisplayYes
- Frequency ScanYes
- Removable AntennaBNC
- Battery Status MonitorYes
- RackkitOptional
