LD Systems U505 HHD2
Quantity
-
Detail

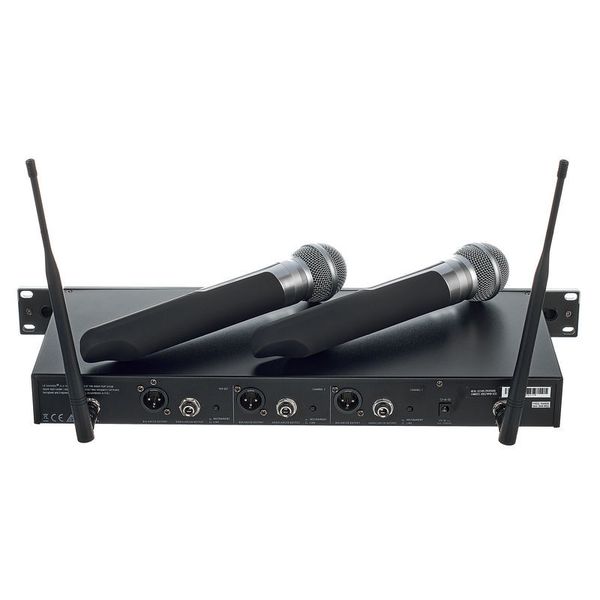

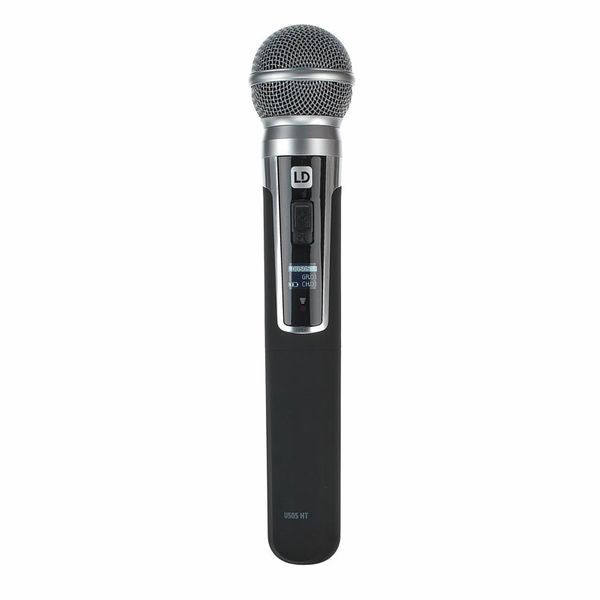

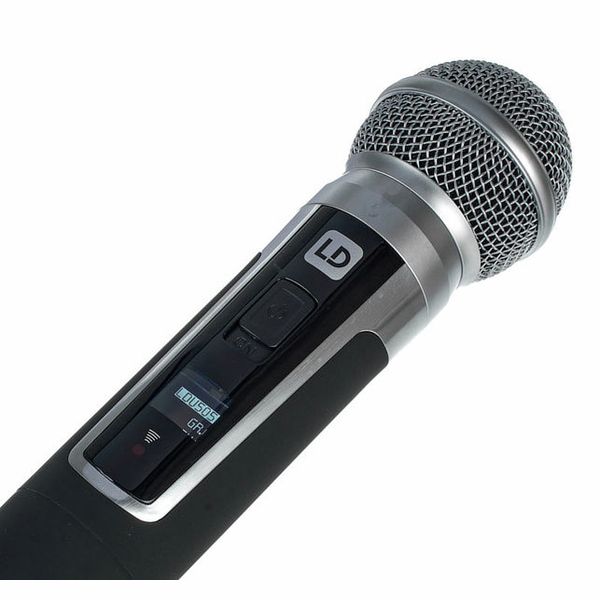

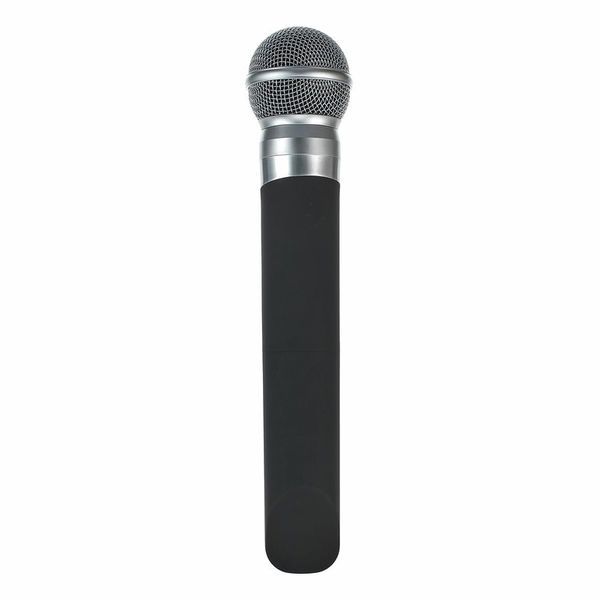

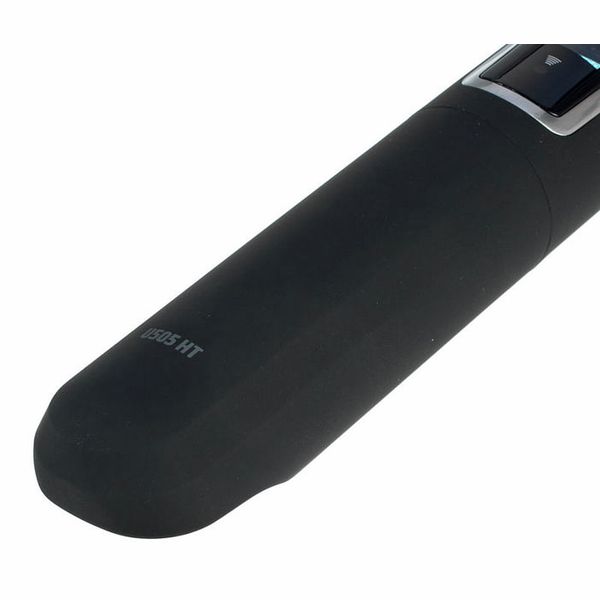

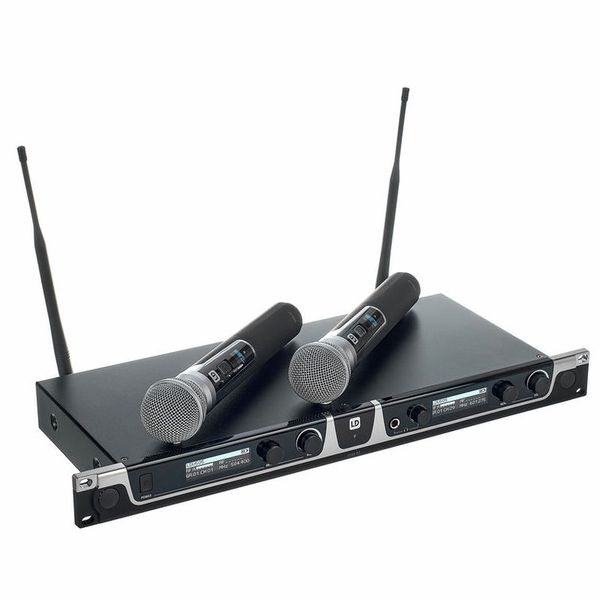

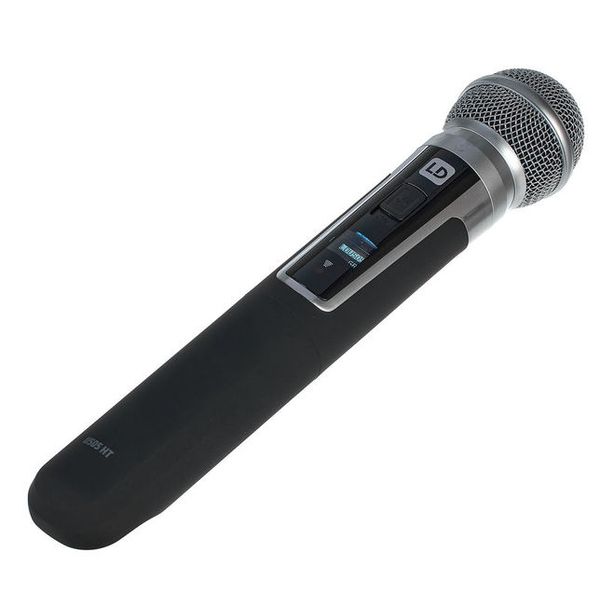

Dual UHF wireless system with 2 handsets with dynamic interchangeable capsule (cardioid)

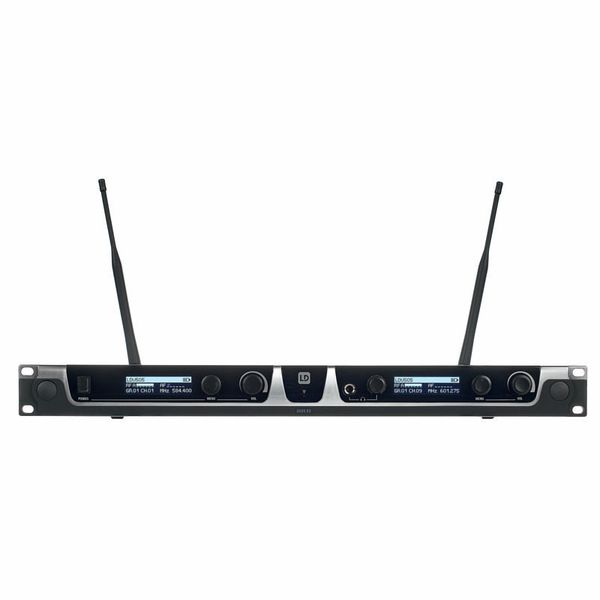

- 19 & quot ;, 1U
- True diversity receiver
- 96 Channels in 8 groups of 12 channels each
- Audio frequency range: 60 - 16,000 Hz
- Switchable transmission power: 2 mW, 10 mW, 30 mW
- Frequency scan in the receiver
- Automatic frequency scan with infrared transmission of the setting from the receiver to the transmitter
- Pilot tone

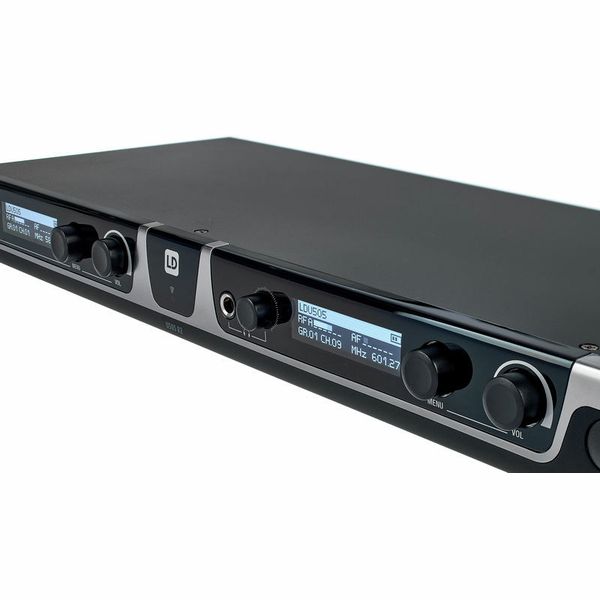

- Bright OLED display

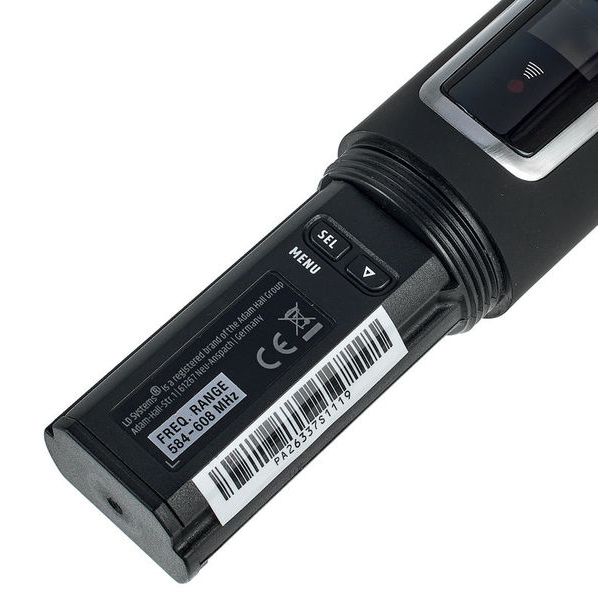

- Transmitter operation with 2 AA batteries or rechargeable batteries
- Adjustable headphone output 6,3 mm
- Frequency band: 584 - 608 MHz

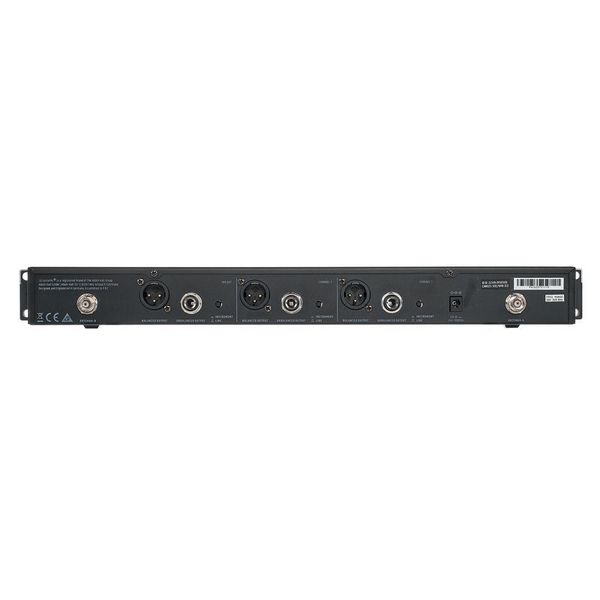

- XLR and jack output per channel
- XLR Jack Mix output
- Operation with 13.5 V DC power supply 1000 mA

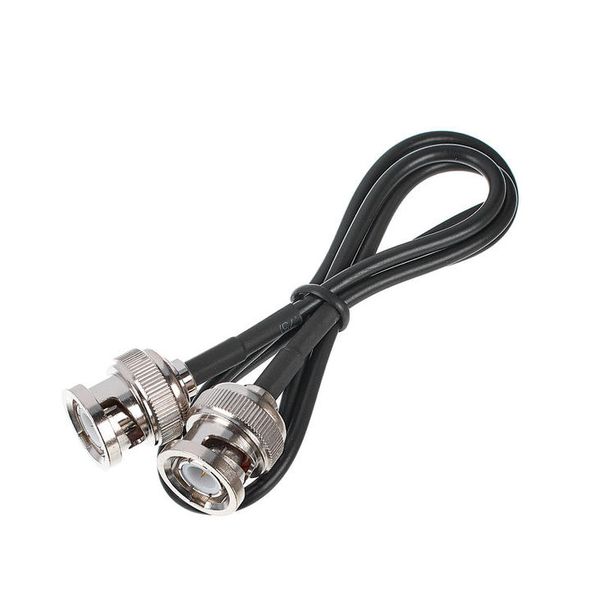

- BNC antenna connections

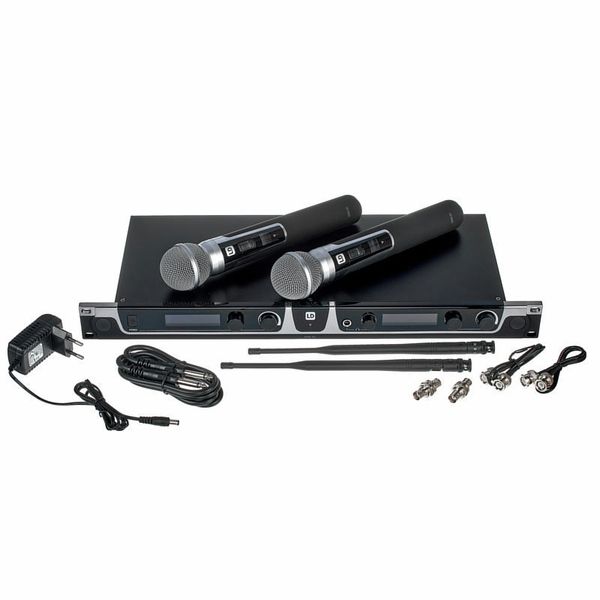

- Incl. 2 AA batteries, antennas, antenna converter, case and power supply
- Available sinceNovember 2017
- Item number416189
- Sales Unit1 piece(s)
- Transmission technologyanalog
- Channels Handheld Transmitter2
- Capsule TypeDynamic
- PatternCardioid
- Receiver TypeStationary
- Frequency584 MHz – 608 MHz
- OutputXLR
- Charging SystemNo
- Integrated BatteryNo
- DanteNo
- DiversityYes
- Interchangeable CapsuleYes
- Receiver Width in mm484 mm
- Receiver Height in mm44 mm
- Receiver Depth in mm200 mm
- Receiver Weight in kg2 kg
- Transmitting Power in mW30 mW
- Selectable Frequencies96
- Frequency DisplayYes
- Frequency ScanYes
- Removable AntennaBNC
- Battery Status MonitorYes
- RackkitOptional
