LD Systems U508 HHC2
Quantity
-
Detail

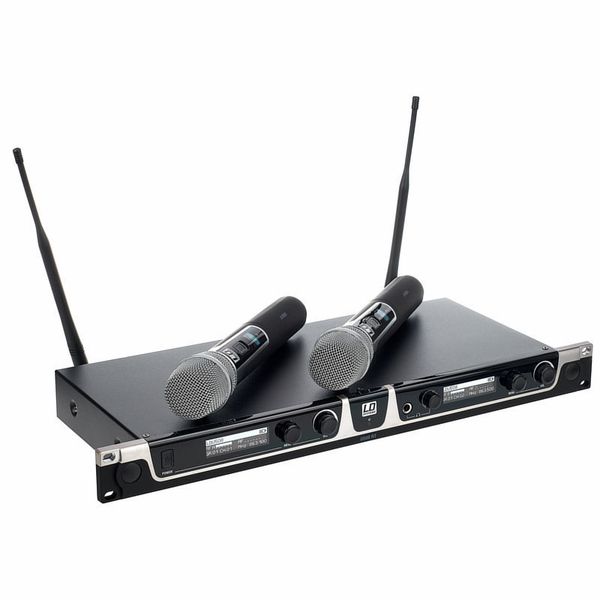

Dual UHF Wireless System

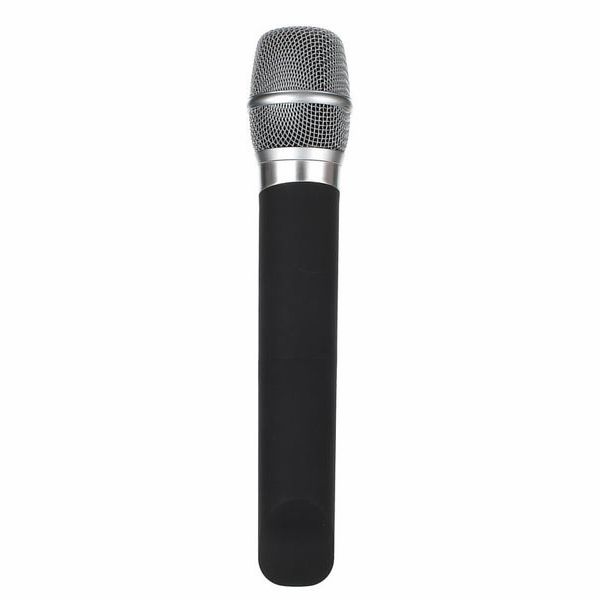

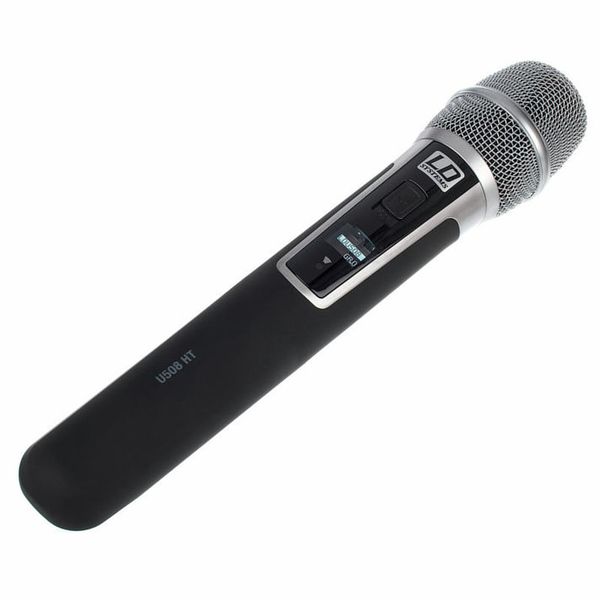

- With 2 remote controls
- Condenser exchange capsule
- Polar pattern: cardioid

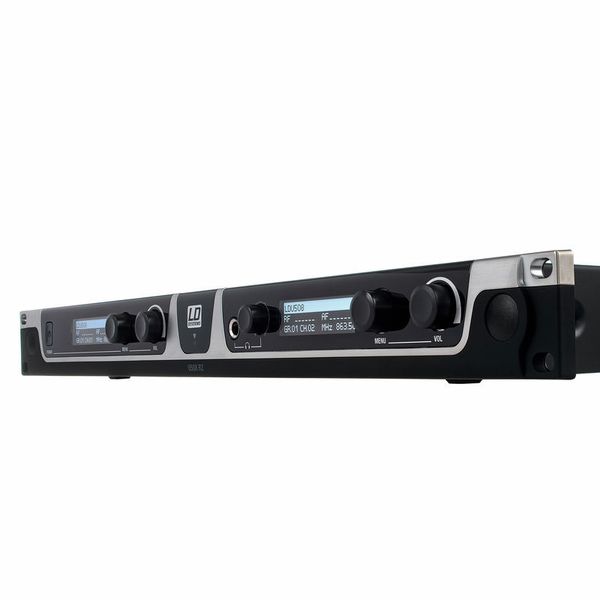

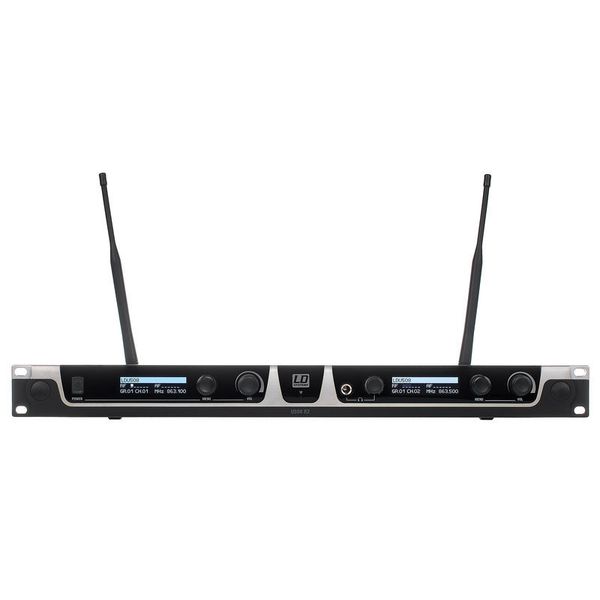

- 19" / 1U true diversity receiver
- 96 channels into 8 groups of 12 channels a
- Audio Frequency Response: 60 - 16000 Hz
- Switchable transmission power (2 mW, 10 mW, 30 mW)
- Frequency scanning in the receiver
- Automatic frequency scanning with infrared transmission setting from the receiver to the transmitter
- Pilot tone
- Bright OLED display
- Adjustable 6.3 mm headphone output

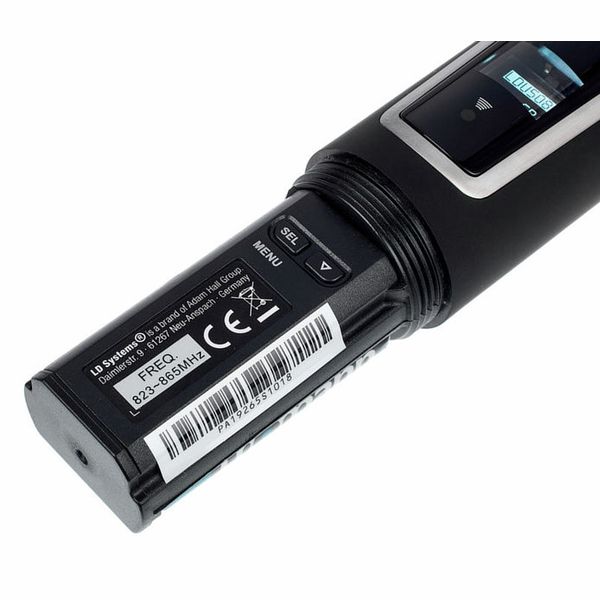

- Transmitter works with 2x AA batteries
- Frequency band 823-832 MHz and 863-865 MHz

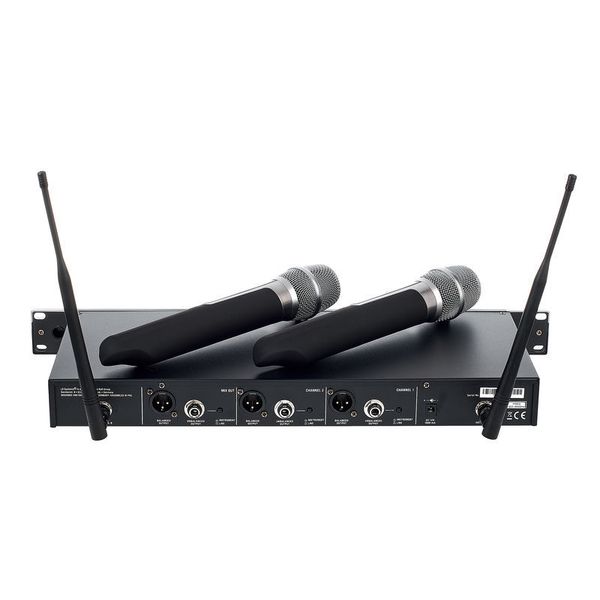

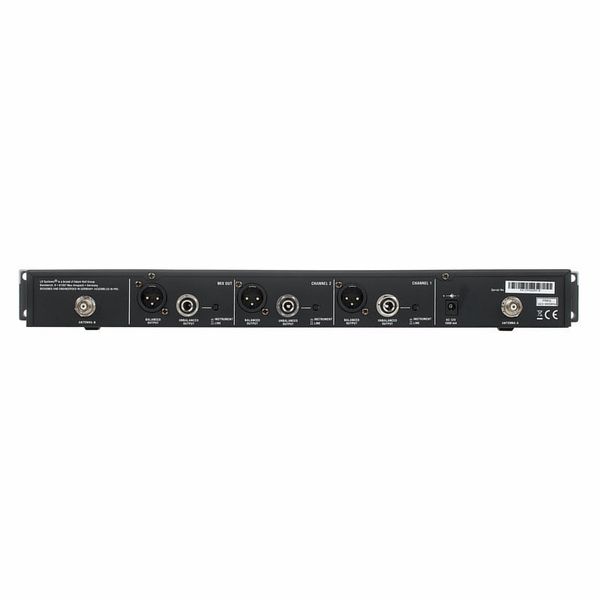

- XLR and jack output per channel
- XLR Jack Mix Out
- Operating at 13.5 V DC power supply 1000 mA

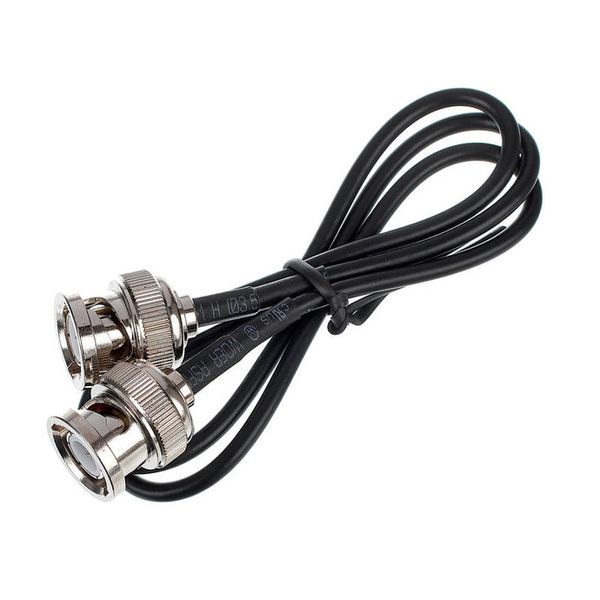

- BNC antenna connections

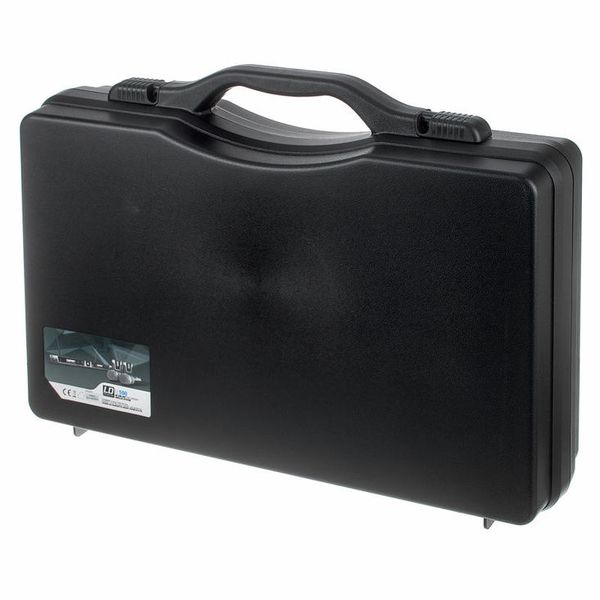

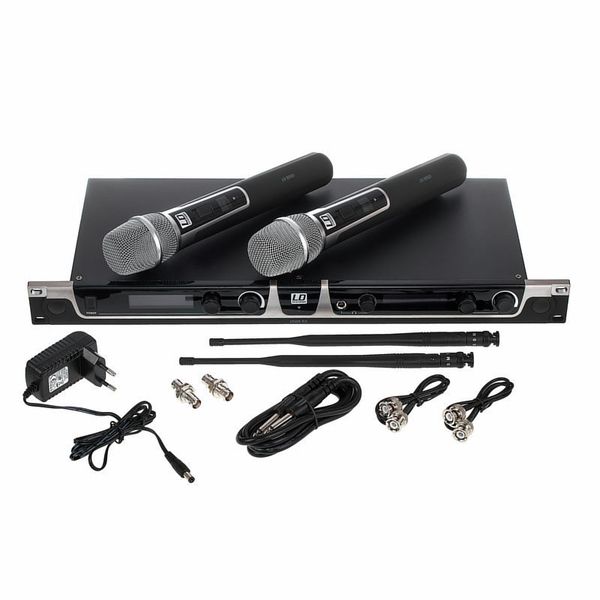

- Incl. 4x AA batteries, antennas, trunk, antenna converter and power supply
- Available sinceSeptember 2016
- Item number395189
- Sales Unit1 piece(s)
- Transmission technologyanalog
- Channels Handheld Transmitter2
- Capsule TypeCondenser
- PatternCardioid
- Receiver TypeStationary
- Frequency823 MHz – 865 MHz
- OutputXLR
- Charging SystemNo
- Integrated BatteryNo
- DanteNo
- DiversityYes
- Interchangeable CapsuleYes
- Receiver Width in mm484 mm
- Receiver Height in mm44 mm
- Receiver Depth in mm200 mm
- Receiver Weight in kg2 kg
- Transmitting Power in mW30 mW
- Selectable Frequencies96
- Frequency DisplayYes
- Frequency ScanYes
- Removable AntennaBNC
- Battery Status MonitorYes
- RackkitOptional
